Performance Line: Perfect for everyday use – and excursions into nature

Maximum torque

100

600

Max. motor power

100

340

Max. support

2.8

Rounded weight

Experience the optimum combination of powerful performance and sensitive support.

Open modal

The new Performance Line is lighter than its predecessor – with the same level of support.

Open modal

The Performance Line is built for heavy use – without the need for additional maintenance.

Open modal

A man rides his eCompact bike along a bicycle street by the river.

Responsible companion

During development, we take care to use materials responsibly. For example, we use around 40% recycled aluminium¹ in the system housing and recycled plastic for certain components in the drive unit.²

More about sustainability

Optimal support

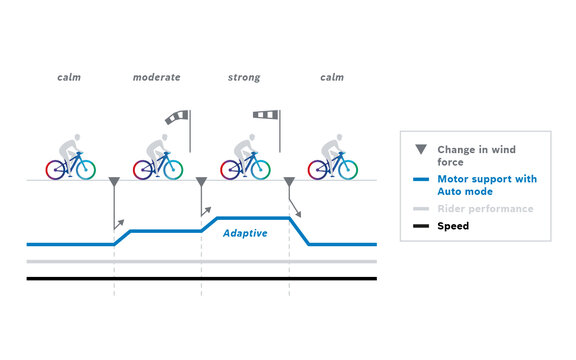

Auto mode ensures you get the right level of support automatically. Such as if you lose speed due to climbs or a sudden headwind, for example. So you can relax and enjoy your tour or excursion.

Discover Auto mode

Two people on loaded eBikes ride along a gravel path. The woman in the foreground smiles as she rides through a dry, hilly landscape.

Walk assistance and hill start assist

Hold down the minus button and start walking: Thanks to walk assistance, you can push your eBike more easily, even on the steepest of trails. With hill start assist, you can set off more easily – without unintentionally rolling backwards.

Bosch eBike ABS stabilises and regulates your braking. For more control in every situation: Whether for daily commuting or more challenging terrain involving gravel and loose surfaces.

Discover Bosch eBike ABS

Close-up of a Bosch eBike ABS on an eBike.

Our digital features act as a deterrent and protect your eBike against theft. Make the most of the free eBike Lock additional theft protection or the eBike Alarm premium service in the Flow+ subscription, for example.³

Protecting your eBike

A woman with a white helmet and a dark sweater stands next to a white bicycle with a basket on the back. Behind her, there's a brick building with large windows.

Depending on the eShift variant, you can switch gears yourself, or eShift will switch gears for you. And in such a way that you pedal evenly in your comfort zone – whether in city traffic or on varied tours.

Discover eShift

Close-up of a rear wheel focusing on the rear derailleur.

With the navigation in the eBike Flow app, you can reach your destination with no need to make any detours. Use Range Control to select the battery level you want to arrive with, and enjoy the ride without having to worry about range.

Discover eBike Flow app

View of a smartphone showing the battery level being set for when the goal is reached via the eBike Flow app.

Put together your four favourite riding modes with the eBike Flow app. Choose from all the modes available for your eBike and customise them individually – from energy-saving on a tour to relaxed in the city.

Discover riding modes

Close-up of a handlebar with Kiox 500 and a smartphone, where you can customize the riding modes.

You can share your eBike with up to five people. Invite friends and family to use your eBike via the eBike Flow app.⁴ So they too can enjoy an even better riding experience.

A person is sitting at the table with the eBike Flow app open on their smartphone, ready to share their eBike with someone.

1 / 6

PowerPack 545 Frame

The PowerPack 545 is the ideal companion for shorter trips and rides around town. You'll never be caught short – even on last-minute diversions or unplanned uphill climbs.

About the product

Kiox 500

Kiox 500 is extra-large, intelligent and robust – making it the ideal display for your next tour, including navigation function and notification tones.

About the product

Bosch eBike ABS

The Bosch eBike ABS helps you to brake more effectively and safely – whether you are in the city, on dirt bike paths or on trails.

About the product

ConnectModule

BCM3100

The basis for digital theft protection: permanently installed on the eBike, it ensures that your eBike is protected online and digitally.

Technische Daten
	Performance Line (BDU346Y)¹
eBike-System	Das smarte System
Schaltungstyp	Kettenschaltung, Nabenschaltung
Max. Unterstützungsstufe (%)	340 %
Max. mögliches Antriebsdrehmoment	75 Nm
Anfahrverhalten	kraftvoll, ruhig
Unterstützung bis max.	25 km/h
Rücktrittbremse	ja
Schiebehilfe mit Hill Hold	ja
Berganfahrhilfe mit Hill Hold	ja
Schalterkennung	optional
Gewicht, ca.	ca. 2,8 kg
Nenndauerleistung	250 W
Maximalleistung	600 W
Max. Leistung bei einer Trittfrequenz von 70 U/min	440 W
Max. gewichtsbezogene Leistung, ca.	214 W/kg

¹Maximum values: Deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception gear shift detection: eShift hubs

² Maximum values: Deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception for gear shift detection: eShift hubs.

⁴Maximum values: Deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
There is no backpedal function for the derailleur system, but it is optional for the hub gear system.
Exception for gear shift detection: eShift hubs

⁵ Maximum values: Deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the individual riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. There is no backpedal function for the derailleur system, but it is optional for the hub gear system.
Exception for gear shift detection: eShift hubs

⁶ Maximum values: Deviations possible, depending on the hub gear system and battery. The maximum support of 600% relates to speeds of up to 15 km/h and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. The values can be set individually to a limited extent using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception gear shift detection: eShift hubs

⁷ The various riding modes are activated/deactivated by the bicycle manufacturer and the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated in the display. Using the individual riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. It's not possible to customise your riding mode on S-pedelecs.

⁸ Maximum values: Deviations possible, depending on the hub gear system and battery. Activation/deactivation of the various riding modes is carried out by the bicycle manufacturer and the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated in the display. Using the individual riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. It's not possible to customise your riding mode on S-pedelecs.

⁹ Maximum values: Deviations possible, depending on the hub gear system and battery. The maximum support of 600% relates to speeds of up to 15 km/h and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception for gear shift detection: eShift hubs.

¹⁰ Maximum values: Deviations possible, depending on the hub gear system and battery. The maximum support of 600% relates to speeds of up to 15 km/h and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception for gear shift detection: eShift hubs

¹¹ The weight refers to the pure motor weight of the Hub Line – without control unit and cadence sensor. Support is based on intelligent sensor fusion, which is why maximum support is not specified as a percentage. Maximum values: Deviation possible depending on battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated.

Performance Line

BDU346Y | Mid-drive motor

Convenient, reliable, natural: The perfect all-rounder for everyday trips and excursions.

The smart system
Max. 75 Nm
Max. 600 W
Max. 340%

Current product

Performance Line

BDU336Y | Mid-drive motor

This barely audible drive unit is the best choice for sporty trekking and relaxed excursions.

The smart system
Max. 75 Nm
Max. 600 W
Max. 340%

About the product
