Intelligence on your handlebar: Displays for eBikes

With the display and control unit, you have all the information you could need available to you right there on the handlebar while riding. These show you how fast you are travelling, how far you can still go, and which riding mode you are currently using.

Zoom in on the handlebars of a free-cut eBike model with a glass-like appearance, featuring an LED Remote and a Kiox300 display from Bosch. The Kiox300 stands out thanks to its more vibrant colors.

Zoom in on the handlebars of a free-cut eBike model with a glass look, featuring an LED Remote and a Kiox300 display from Bosch. The LED Remote is highlighted with more vivid colors.

Zoom in on the top tube of a free-cut eBike model with a glass-like appearance, where a Kiox400C display from Bosch is prominently highlighted. A MiniRemote is visible on the handlebars. The Kiox400C stands out thanks to more vibrant colors.

Important information in view

Whether the display, control unit or all-in-one – with the various solutions from Bosch, you'll find the right companion for you on your handlebars. For simple operation and an optimal overview.

DisplayFind out more Control unitFind out more All-in-oneFind out more

Compare technical data

Technical data	New								New		New
	SmartphoneGrip Vertical	SmartphoneGrip	Kiox 400C	Kiox 500	Kiox 300	Purion 400	Purion 200	Intuvia 100	Intuvia 200	LED Remote	LED Controller	System Controller	Mini Remote/Mini Remote Dropbar
System	The smart system	The smart system	The smart system	The smart system	The smart system	The smart system	The smart system	The smart system	The smart system	The smart system	The smart system	The smart system	The smart system
Screen size	Dependent on the smartphone^¹^;⁸	Dependent on the smartphone^¹^;³	Diagonal approx. 2.0"/5.1 cm	Diagonal approx. 2.8"/7.1 cm	Diagonal approx. 2.0"/5.1 cm	Diagonal approx. 1.6"/4.1 cm	Diagonal approx. 1.6"/4.1 cm	Diagonal approx. 2.5"/6.4 cm	Diagonal approx. 2.4"/6.4 cm	n/a	n/a	n/a	n/a
Colour screen	Dependent on the smartphone^*¹	Dependent on the smartphone^*¹	j	j	j	j	j	No	TFT IPS display with greyscale	no	No	No	No
Max. typical brightness	Dependent on the smartphone^*¹	Dependent on the smartphone^*¹	1,000 cd/m²	1,000 cd/m²	1,000 cd/m²	1,000 cd/m²	1,000 cd/m²	n/a	1,000 cd/m²	n/a	No	n/a	n/a
Handlebar diameter (with Display Mount kit)	31.8 mm/35.0 mm	31.8 mm/35.0 mm	n/a	31.8 mm/35.0 mm	31.8 mm/35.0 mm	31.8 mm/35.0 mm	22,2 mm	25.4 mm/31.8 mm/35.0 mm	31.8 mm/35.0 mm	22,2 mm	22,2 mm	n/a	22.2 mm/31.8 mm
Type of protection	When the protective cap for the USB port is closed IP55, protected against dust and water jets^*⁶	When the protective cap for the USB port is closed IP55, protected against dust and water jets^*²	IP55, protected against dust and water jets	IP55, protected against dust and water jets	IP55, protected against dust and water jets	IP55, protected against dust and water jets	IP55, protected against dust and water jets	IP55, protected against dust and water jets	IP55, protected against dust and water jets	IP55, protected against dust and water jets	IP55, protected against dust and water jets	IP55, protected against dust and water jets	IP55, protected against dust and water jets
Operating temperature	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C	- 5 °C to 40 °C
Power supply (with eBike system)	eBike battery^*⁶	eBike battery^*²	eBike battery/integrated battery	eBike battery	eBike battery	eBike battery	eBike battery/integrated battery	CR2450 button cell battery	eBike battery	eBike battery/integrated battery	eBike battery/integrated battery	eBike battery/integrated battery	CR1620 button cell battery
Charging station for external devices	Inductively (5 W) or via a USB-C® cable (max. 7.5 W)^*⁷	Inductive or via cable^*³	via USB-C®	No	No	No	No	No	No	No	via USB-C® connector with up to 10 watts^*⁹	No	No
Dimensions (H x W x D)	Approx. 130 x 76 x 33 mm^⁶^;⁸	Approx. 65 x 76 x 33 mm^²^;³	Approx. 86 x 45 x 20 mm	Approx. 86 x 61 x 16 mm	Approx. 66 x 48 x 15 mm	Approx. 33 x 59 x 23 mm^*⁴	Approx. 86 x 65 x 53 mm	Approx. 74 x 64 x 18 mm	Approx. 69 x 51 x 23 mm	Approx. 64 x 74 x 18 mm^*⁴	27 x 52 x 42 mm	Approx. 88 x 28 x 27 mm	Approx. 40 x 39 x 22 mm/approx. 50 x 46 x 22 mm
weight	Approx. 97 g^⁶^;⁸	Approx. 75g^²^;³	Approx. 57 g	Approx. 61 g	Approx. 33 g	Approx. 27 g^*⁴	Approx. 49 g	Approx. 62 g	Approx. 40 g^*¹⁰	Approx. 31 g^*⁴	Approx. 28 g	Approx. 35 g	Approx. 16 g/approx. 20 g
Brightness control	Dependent on the smartphone^*¹	Dependent on the smartphone^*¹	j	j	j	j	j	1^*⁵	j^*¹¹	j	Yes	j	No
Notification tones	Dependent on the smartphone^*¹	Dependent on the smartphone^*¹	j	j	No	j	No	No	No	No	No	No	No
Number of buttons	Dependent on the smartphone^*¹	Dependent on the smartphone^*¹	2 and On/Off	no buttons	no buttons	no buttons	5 and On/Off	1 and reset button	No	5 and On/Off	5 and On/Off	1 and On/Off	3
Languages	No	No	English, German, French, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Norwegian, Polish, Czech	English, German, French, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Norwegian, Polish, Czech, Japanese, Traditional Chinese for Taiwan, Korean.	English, German, French, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Norwegian, Polish, Czech, Japanese, Traditional Chinese for Taiwan, Korean.	English, German, French, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Norwegian, Polish, Czech, Japanese, Traditional Chinese for Taiwan, Korean.	English, German, Dutch, French, Italian, Spanish, Portuguese, Japanese, Korean, Traditional Chinese, Swedish, Danish, Polish, Czech and Norwegian.	English, German, French, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Norwegian, Polish, Czech, Japanese, Traditional Chinese for Taiwan, Korean.	English, German, French, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Norwegian, Polish, Czech, Japanese, Traditional Chinese for Taiwan, Korean.	No	No	No	No

^*¹ A smartphone is required and must be provided by the user
^*² Only applies to SmartphoneGrip
^*³ Suitable for smartphones incl. Camera bump and case with the following dimensions (L x W x H): 123 - 175 mm x 67 - 88 mm x 6.8 - 13 mm and a total weight of up to 276 g incl. cover. Not suitable for wallet cases.
^*⁴ Without clamp
^*⁵ Manually adjustable (backlight is not permanently on)
^*⁶ Only applies to SmartphoneGrip Vertical.
^*⁷ The USB-C® cable is not included in the scope of delivery.
^*⁸ Suitable for smartphones incl. camera body and case with the following dimensions (L x W x D): 135–170 mm x 68–80 mm x 7–12 mm and a total weight of up to 260 g incl. case. Not suitable for foldable smartphones and smartphones with flip covers/cases. Depending on the case, the inductive charging feature may be limited.
^*⁹ Depending on the drive unit installed in the eBike and the devices connected to it (e.g. high beam lights), charging may not be possible, or may only be possible to a limited extent.
^*¹⁰ Without mount
^*¹¹ Automatic brightness via light sensor or manually adjustable

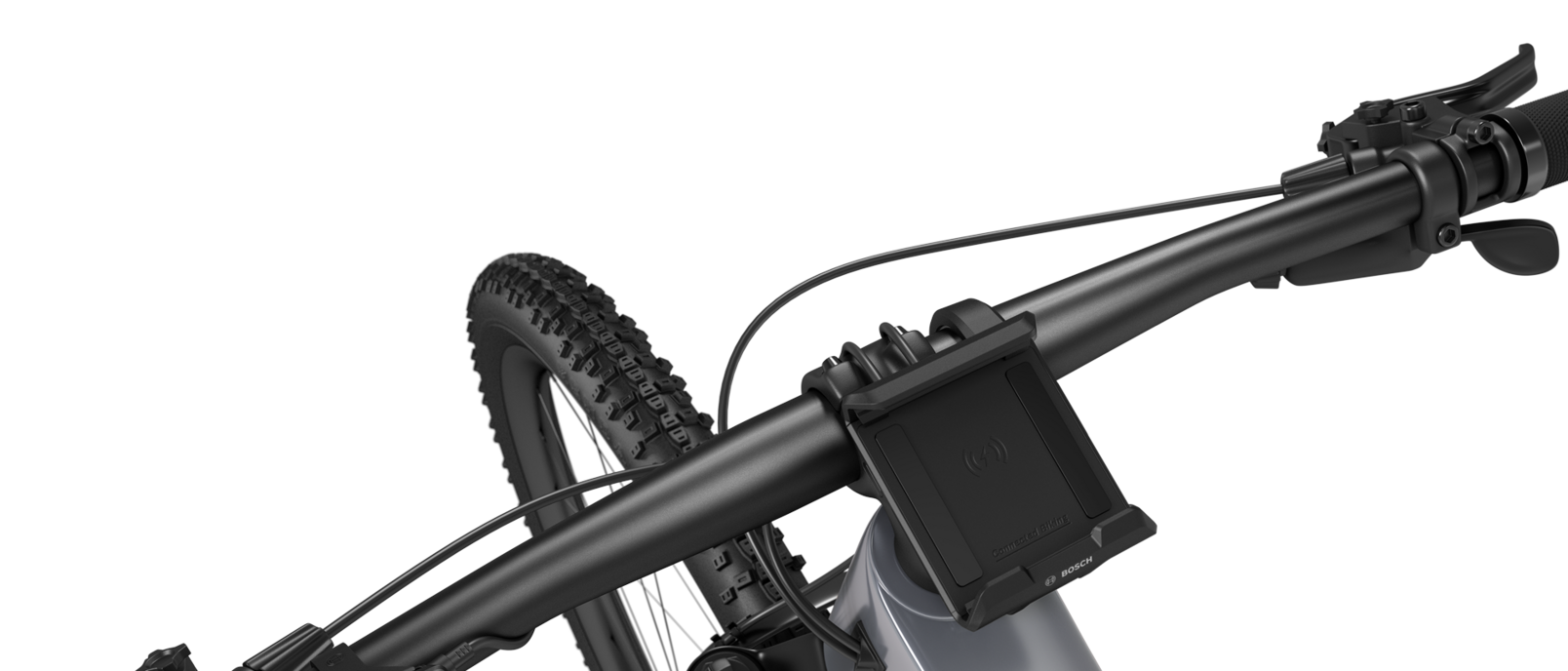

A black eBike positioned against a white background, featuring a SmartphoneGrip mounted on the handlebar.

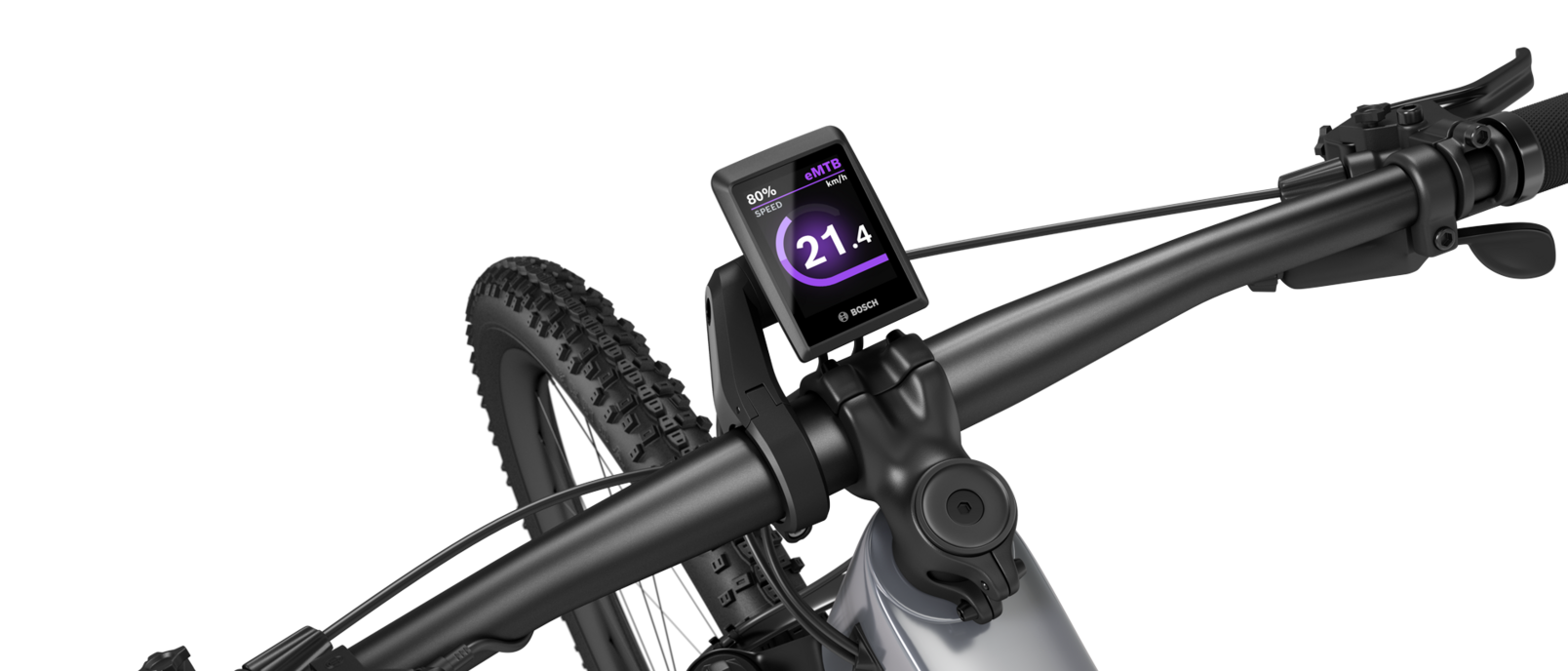

Zoom in on the handlebars of a free-cut eBike, where a Kiox 300 is visible.

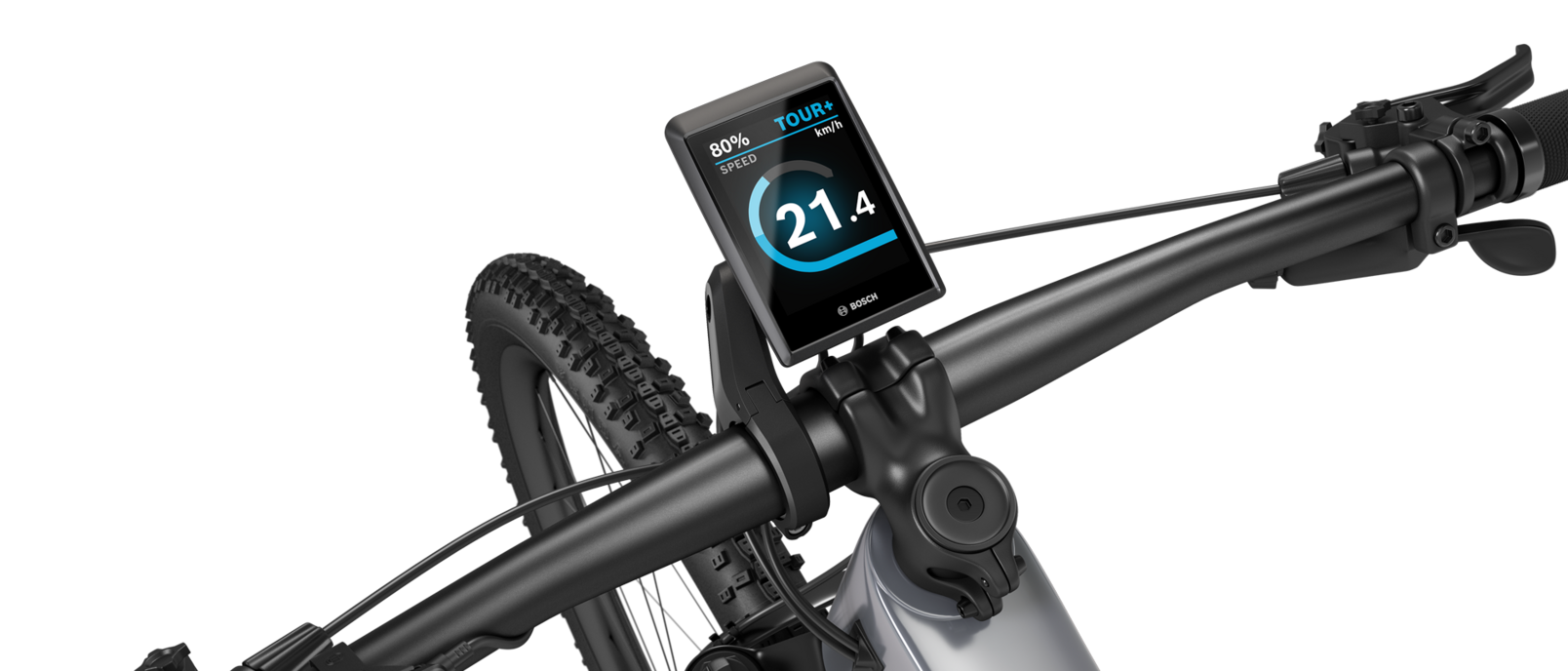

A silver eMountain bike with a black handlebar stands isolated against a white background. A Kiox 500 is mounted on the handlebar. The display shows the speed in km/h, the battery level, and the riding mode.

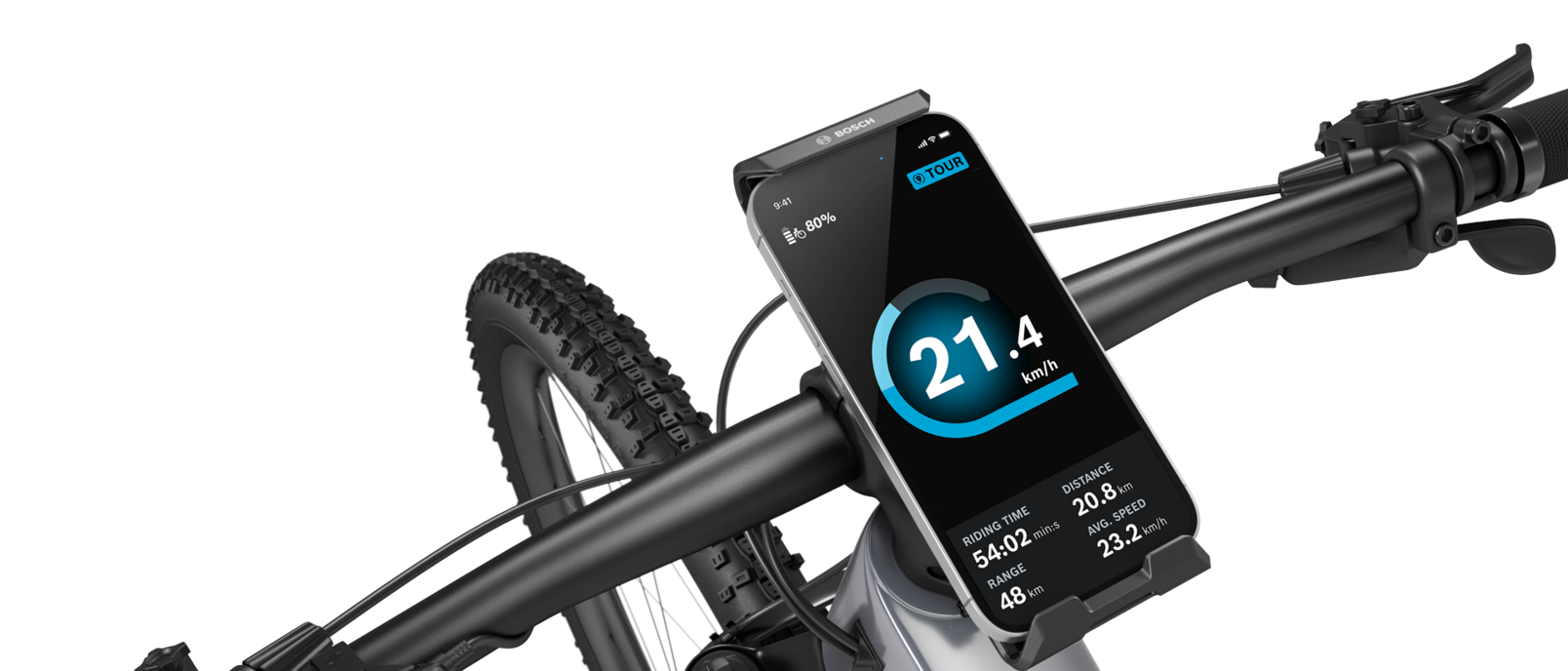

Close-up of eBike handlebars with a SmartphoneGrip Vertical holding a smartphone placed in the center.

Intelligent and customisable

Our displays and control units are robust, easy to operate and customisable. They can be continuously expanded to include new features using the eBike Flow app.
