Cropped Performance Line CX on light gray background.

Max. torque

100

600

Max. motor power

140

600

Max. support¹

0.9

2.9

Rounded weight

Trick Check

Show everyone what you’ve got: Trick Check makes your skills measurable. Your tricks are recognised automatically and shown live on the display. Your best performances are saved in the eBike Flow app.²

Discover Trick Check

Performance upgrade 2.0

The performance upgrade 2.0 enables maximum motor support of 600% up to 15 km/h via a free software update.¹

Discover now

Extended Boost

Extended Boost is now even better: Customise the extra boost in the eBike Flow app and use it across all riding modes and other drive units.³ Allowing you to overcome obstacles such as steps, roots or small rocks.

Discover now

The Performance Line CX is the power benchmark among drives. For a unique eMTB experience.

Open overlay

The eMTB+ mode offers the perfect combination of dynamics, performance and control.

Open overlay

The multi-sensor concept enables intuitive handling and an agile riding experience.

Open overlay

Two eBikers are riding on a rocky trail through a forest.

The Purion 400 display is mounted on a bicycle handlebar. It shows the current speed on the display.

Dynamic and natural

eMTB mode dynamically adjusts the support and ensures a natural riding experience and optimum control when eMountain biking. Ideal for technical passages and overcoming obstacles.

Discover eMTB mode

Close-up of a Purion 200 with speed and Tour+ screen layout.

For sporty tours

With the stepless support offered by Tour+ mode, you will save energy and enjoy a natural riding experience. It will no longer be necessary to switch modes manually. So your focus will always be on riding fun.

Discover Tour+ mode

An eMountain bike rider pushes his eBike up a dirt slope in the forest.

Walk assistance and hill start assist

Hold down the minus button and start walking: Thanks to walk assistance, you can push your eBike more easily, even on the steepest of trails. With hill start assist, you can set off more easily – without unintentionally rolling backwards.

Ambitious trails, faster rides, better skills: The Bosch eBike ABS system's ABS Trail mode is made for demanding routes and challenging terrain.

Discover Bosch eBike ABS

An eBike with an onboard computer displaying "ABS" and "eMTB". It is set to "Trail Pro" mode.

M+ offers the ideal combination of automatic and manual gear selection. The feature selects the right gear when you're coasting – so you can focus on your ride. When you pedal, you shift gears yourself – for full control.

Discover eShift

Stay loyal to your community and use your favourite apps with your eBike. By connecting to the eBike Flow app, you can synchronise routes, ride data and activities with Strava – fully automatically.

You sit on your eBike and sync your values with Strava using the eBike Flow app.

Put together what suits you: In the eBike Flow app, you can define your four favourite riding modes. Choose from all the riding modes available for your eBike – and customise them in the usual way.

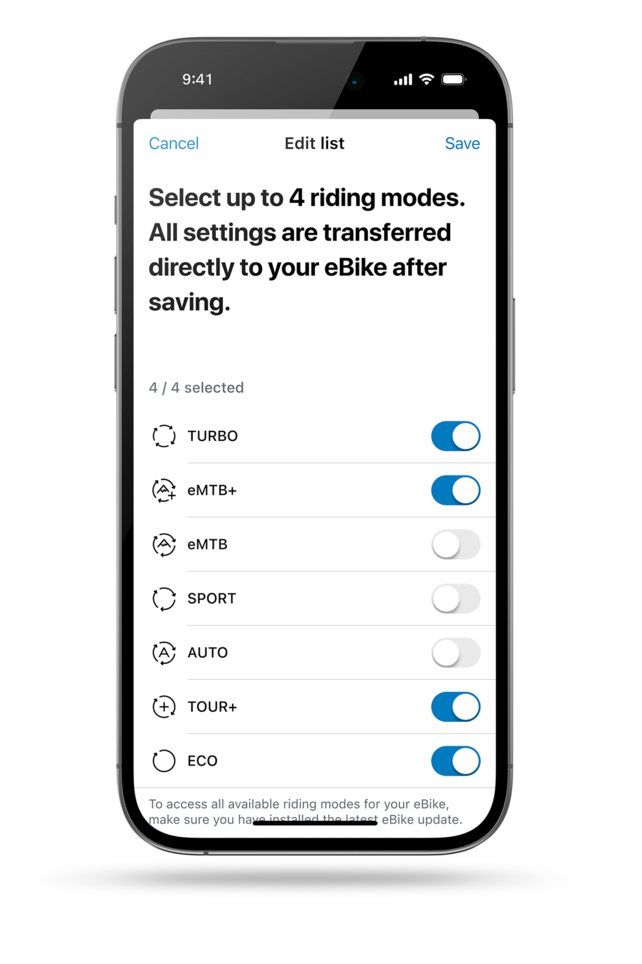

Screenshot of the eBike Flow app: List of available riding modes (Turbo, eMTB+, eMTB, Sport, Auto, Tour+, Eco) for customising your eBike. You can select up to four riding modes. The selected modes are "Turbo, eMTB+, Tour+ and Eco".

The eBike Flow app records your ride data and provides you with valuable insights into your tour and fitness data. With a Flow+ subscription⁴, you'll get additional statistics and an annual overview.

Discover Flow+

Looking over the shoulder of a man checking his stats in the eBike Flow app.

The eBike Flow app can be used as a digital garage: Here, you can add up to six eBikes to your account – and easily switch back and forth between them.

Discover the eBike Flow app

A person holds a smartphone displaying a list of their own eBikes in the eBike Flow app.

1 / 6

Bosch eBike battery (PowerTube 540) with gray print.

PowerTube 800

The PowerTube is perfectly integrated into the frame, creating an elegant, clean eBike look.

About the product

Kiox 300

As a sporty companion on tours, Kiox 300 displays all relevant information clearly and in colour.

About the product

Bosch eBike ABS

The Bosch eBike ABS helps you to brake more effectively and safely – whether you are in the city, on dirt bike paths or on trails.

About the product

ConnectModule

BCM3100

The basis for digital theft protection: As a technology permanently installed on the eBike, it ensures that your eBike is protected online and digitally.

About the product

Technical data
	Performance Line CX (BDU384Y)⁹	Performance Line CX (BDU374Y)¹⁰
eBike system	The smart system	The smart system
Shifting system type	Derailleur system, hub gear system	Derailleur system, hub gear system
Max. support (%)	600 %	600 %
Maximum possible drive torque	120 Nm	85 Nm
Start-up behavior	direct, powerful	direct, powerful
Max. supported speed	25 km/h	25 km/h
Backpedal brake	x	x
Walk assist with Hill Hold	j	j
Hill start assist with Hill Hold	j	j
Gear shift detection	Hub gear system: no Derailleur system: yes	Hub gear system: no Derailleur system: yes
Weight, approx.	2,8 kg	2,9 kg
Rated continuous output	250 W	250 W
Maximum power	750 W	600 W
Max. power at a cadence of 70 rpm	730 W	600 W
Max. power-to-weight ratio, approx.	268 W/kg	207 W/kg

¹Maximum values: Deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception gear shift detection: eShift hubs

² Maximum values: Deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception for gear shift detection: eShift hubs.

⁴Maximum values: Deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
There is no backpedal function for the derailleur system, but it is optional for the hub gear system.
Exception for gear shift detection: eShift hubs

⁵ Maximum values: Deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the individual riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. There is no backpedal function for the derailleur system, but it is optional for the hub gear system.
Exception for gear shift detection: eShift hubs

⁶ Maximum values: Deviations possible, depending on the hub gear system and battery. The maximum support of 600% relates to speeds of up to 15 km/h and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. The values can be set individually to a limited extent using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception gear shift detection: eShift hubs

⁷ The various riding modes are activated/deactivated by the bicycle manufacturer and the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated in the display. Using the individual riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. It's not possible to customise your riding mode on S-pedelecs.

⁸ Maximum values: Deviations possible, depending on the hub gear system and battery. Activation/deactivation of the various riding modes is carried out by the bicycle manufacturer and the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated in the display. Using the individual riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. It's not possible to customise your riding mode on S-pedelecs.

⁹ Maximum values: Deviations possible, depending on the hub gear system and battery. The maximum support of 600% relates to speeds of up to 15 km/h and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception for gear shift detection: eShift hubs.

¹⁰ Maximum values: Deviations possible, depending on the hub gear system and battery. The maximum support of 600% relates to speeds of up to 15 km/h and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception for gear shift detection: eShift hubs

¹¹ The weight refers to the pure motor weight of the Hub Line – without control unit and cadence sensor. Support is based on intelligent sensor fusion, which is why maximum support is not specified as a percentage. Maximum values: Deviation possible depending on battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated.

Performance Line CX

BDU374Y (Gen 4) | Mid-drive motor

Powerful, dynamic drive unit for intuitive handling and a unique riding experience.

The smart system
Max. 85 Nm
Max. 600 W
Max. 600%

Current product

Performance Line CX

BDU384Y (Gen 5) | Mid-drive motor

For a unique eMTB experience: The ideal system for demanding riders.

The smart system
Max. 120 Nm
Max. 750 W
Max. 600%

About the product

Performance Line CX

BDU450CX | Mid-drive motor

The powerhouse among the drive units.

Bosch eBike system 2
Max. 85 Nm
Max. 600 W
Max. 340%

About the product

All drive units

Up to 600% support only up to 15 km/h. Available in Race, Turbo, eMTB+, Cargo and Auto riding modes. Details on the compatibility of your eBike can be found in the eBike Flow app.
