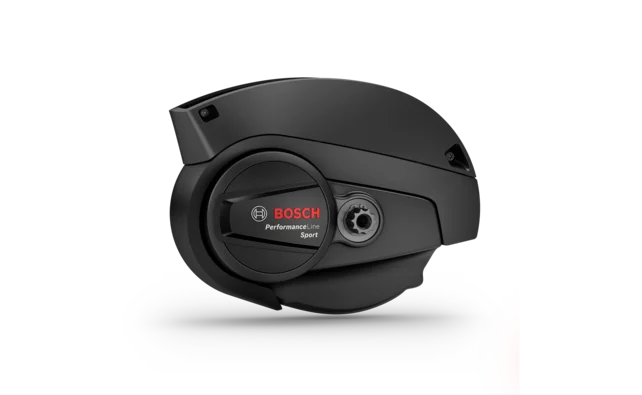

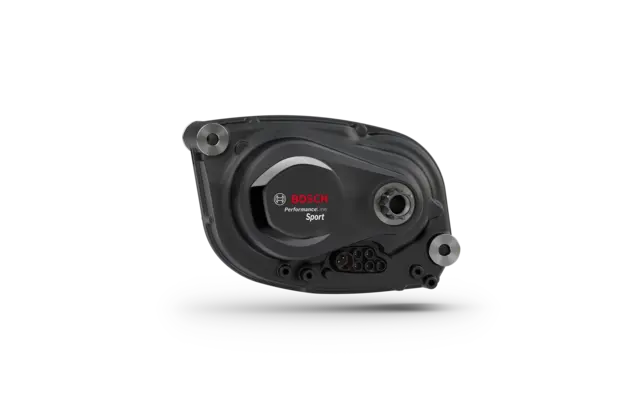

The Performance Line Sport drive unit showcased against a sleek grey background.

Max. torque

100

600

Max. motor power

140

340

Max. support

0.9

3.2

Rounded weight

The Performance Line Sport provides you with strong support – even when pedaling fast.

Overlay

A person rides an e-bike on a bicycle path marked with a bicycle symbol. The bike has a large bag on the luggage rack. In the background, palm trees and buildings are visible.

Enjoy your surroundings with this whispering but powerful motor and its noise-optimized gears.

Overlay öffnen

This high-quality drive unit is designed for both long-term and intensive use.

Overlay öffnen

A man is driving up a hill next to a tram, with the sun shining. He has tilted his head to the right, towards the tram.

Optimum support – automatically

The Auto mode automatically adjusts the support if the speed drops due to ascents or sudden headwinds. This leaves you free to focus on the road ahead and to enjoy your ride to the fullest.

Discover the Auto mode

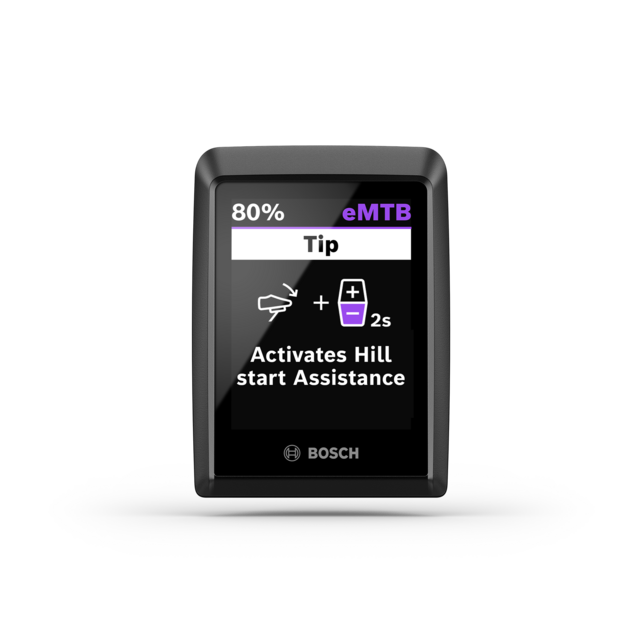

Cropped Kiox 300 showing a tip on how to start hill start assist.

For steep terrain

Walk assistance allows you to easily push your eBike, while the drive unit automatically adjusts the walking speed. Hill start assist enables a controlled and high-traction start, even on steep terrain.

The navigation function for Kiox 300 and Kiox 500 will get you safely to your destination. Extended Navigation provides you with an even more detailed map.¹ And Range Control helps you with route planning.

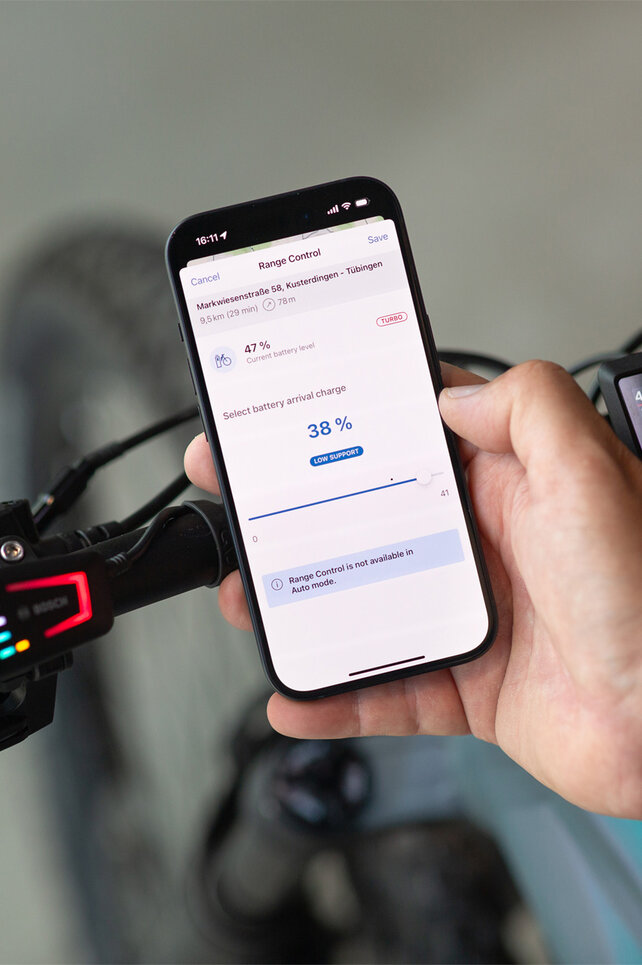

View of a smartphone showing the battery level being set for when the goal is reached via the eBike Flow app.

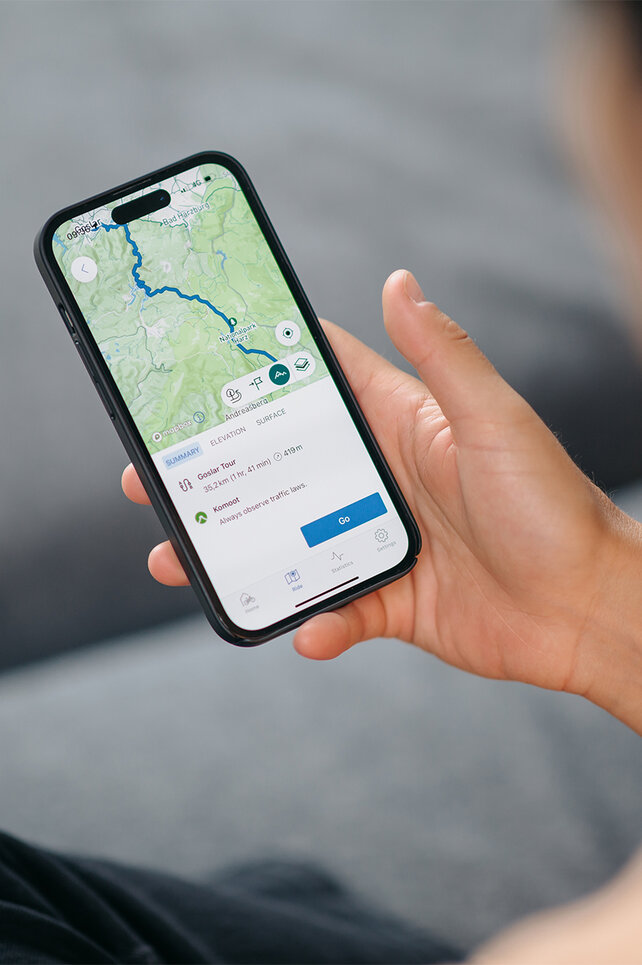

Are you planning a trip? If you link the eBike Flow app with your komoot account, you can transfer routes between the apps and share your rides with the community.

Our digital features help to protect your eBike against theft. eBike Lock is your free theft protection. Lock and unlock your eBike automatically using your smartphone or display as a digital key.

Protect your eBike

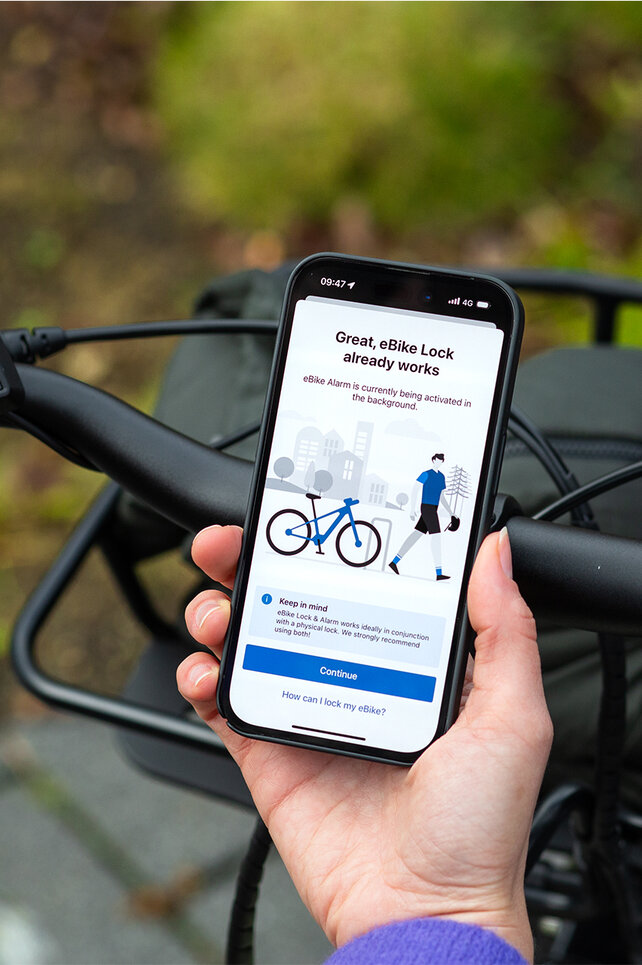

Looking over the shoulder of a person holding a smartphone and activating the eBike Lock and eBike Alarm functions in the eBike Flow app.

eShift makes gear changes easier and more efficient: Depending on the variant, you can shift gears yourself or eShift shifts automatically so that you pedal evenly in your individual comfort zone.

Discover eShift

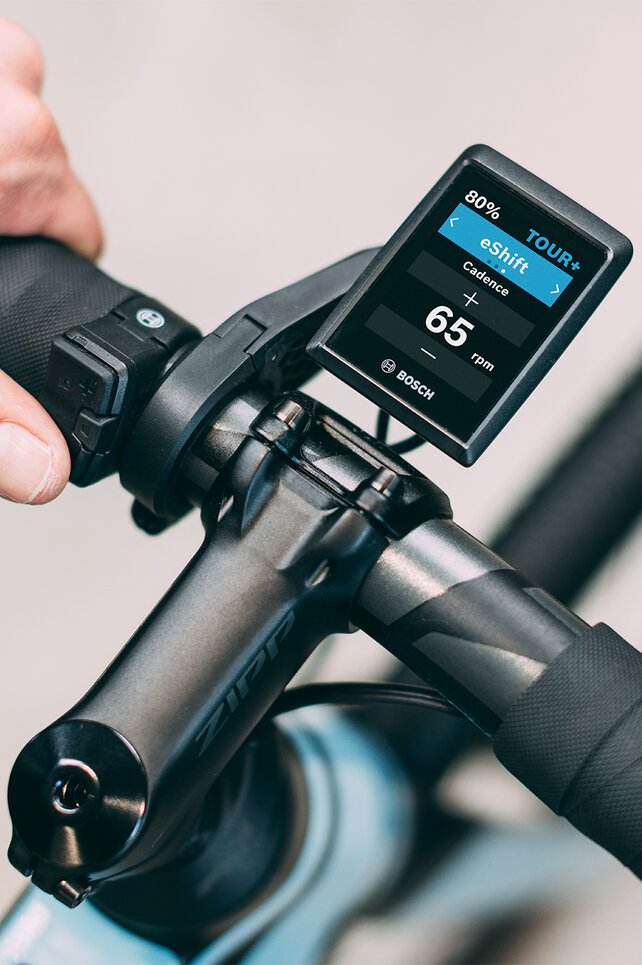

View of the handlebars and the Kiox 300 with the eShift setting open.

With the eBike Flow app, you can put together your four favorite riding modes. Choose from all the riding modes available for your eBike – and customize them in the usual way.

Discover the eBike Flow App

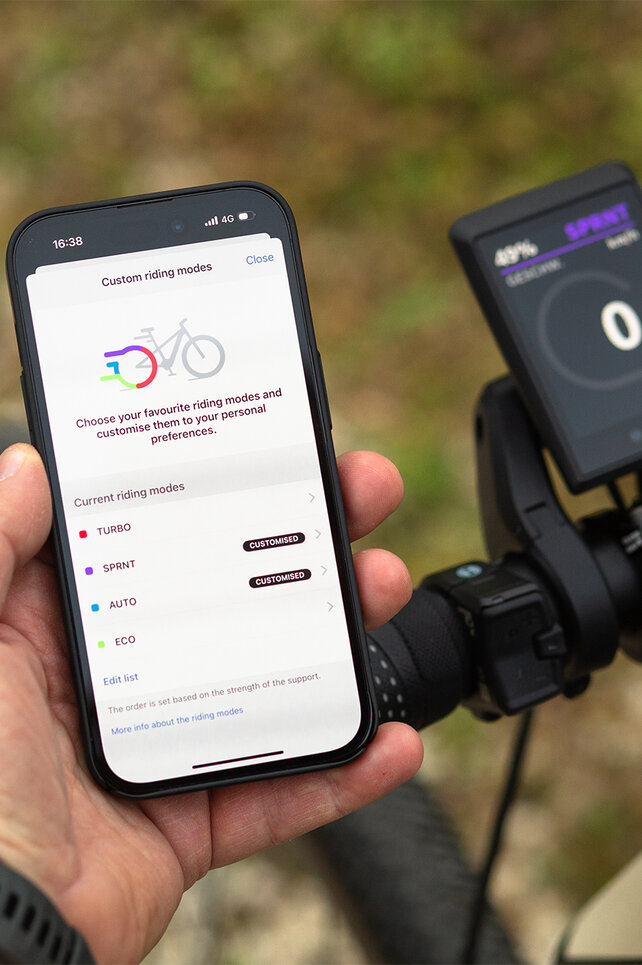

Close-up of a handlebar with Kiox 500 and a smartphone, where you can customize the riding modes.

After a ride, you can compare your rider power and motor power and see which riding modes you used and how often. You also benefit from an annual overview of the most important ride data in your statistics.¹

Discover Flow+

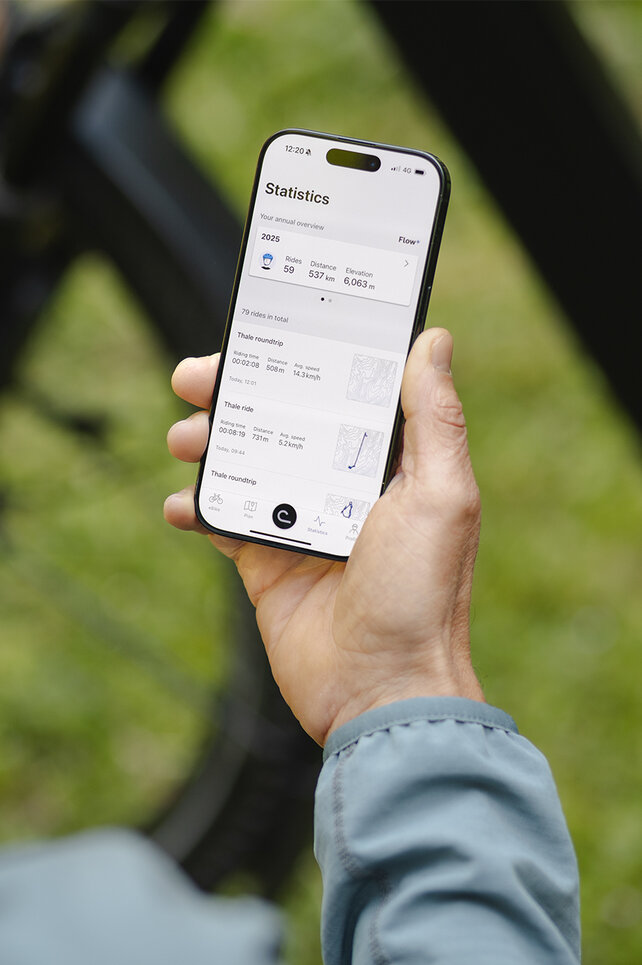

Looking over the shoulder of a man checking his stats in the eBike Flow app.

1 / 6

Technical Data
	Performance Line Sport (BDU338Y)¹⁰
eBike system	The smart system
Shifting system type	Derailleur system, hub gear system
Maximum support (%)	340 %
Maximum possible drive torque	75 Nm
Start-up behavior	powerful, smooth
Max. supported speed	45 km/h
Backpedal braking	x
Walk assistance with Hill Hold	y
Hill start assist with Hill Hold	y
Gear shift detection	Derailleur system: yes Hub gear system: no
Weight, approx.	3.2 kg
Rated continuous output	250 W
Maximum power	600 W
Max. power at a cadence of 70 rpm	550 W
Max. power-to-weight ratio, approx.	188 W/kg

¹ Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

² Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

³ Maximum values: deviations possible, depending on the hub gear system and battery. The values can be set individually to a limited extent using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁴ Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁵ Only available in New Zealand and the USA. Maximum values: deviations possible, depending on the hub gear system and battery. The max. support of 600% relates to speeds of up to 9.3 mph and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. On delivery, the performance values of this drive unit can be lower. They can be increased and individually adjusted with the help of the eBike Flow app. It should be noted that higher performance values can lead to increased wear and can have a negative impact on the range.
The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. With the help of the individual riding modes, the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception regarding gear shift detection: eShift hubs

⁶ Maximum values: deviations possible, depending on hub gear system and battery. The maximum support of 600% relates to Speeds of up to 20 mph and can be increased in the Race, Turbo, eMTB+, Cargo, and Auto riding modes. The values can be set individually to a limited extent using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer, or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes,
the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception gear shift detection: eShift hubs

⁷ Maximum values: deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁸ Maximum values: deviations possible, depending on the hub gear system and battery. The values can be set individually to a limited extent using the eBike Flow app. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁹ Maximum values: deviations possible, depending on hub gear system and battery. The maximum support of 600% relates to Speeds of up to 20 mph and can be increased in the Race, Turbo, eMTB+, Cargo, and Auto riding modes. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer, or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception gear shift detection: eShift hubs

¹⁰ Maximum values: deviations possible, depending on hub gear system and battery. The maximum support of 600% relates to speeds of up to 20 mph and can be increased in the Race, Turbo, eMTB+, Cargo, and Auto riding modes. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer, or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception gear shift detection: eShift hubs

^¹¹ Only available in New Zealand and the USA. Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

¹² Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

¹³ Maximum values: deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. There is no backpedal function with the derailleur system, but it is optional for the hub system.
Exception regarding gear shift detection: eShift hubs

¹⁴ Maximum values: deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. There is no backpedal function with the derailleur system, but it is optional for the hub system.
Exception regarding gear shift detection: eShift hubs

¹⁵ Only available in New Zealand and the USA. Maximum values: deviations possible, depending on the hub gear system and battery. The max. support of 600% relates to speeds of up to 9.3 mph and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

¹⁶ The weight refers exclusively to the motor weight of the Hub Line – without control unit and cadence sensor. No support factor: The support is based on intelligent sensor fusion, which is why no support factor is specified. Maximum values: Deviation possible depending on battery. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated.

¹⁷ Support up to 45 km/h for the Performance Line CX-R (BDU386Y), Performance Line CX (BDU384Y), and Cargo Line (BDU384Y) is exclusive to the New Zealand market. This higher speed requires explicit manufacturer approval for the respective eBike model. Please consult your local specialist dealer to check compatibility and availability for your eBike.
