Less on your handlebars. More in terms of features.

LED Controller

product view of the Bosch LED Controllers control unit on a transparent background.
USB-C
Charge your smartphone on the go¹
Intuitive LED display
Brightness perfectly adapted to your surroundings
Versatile
Touring eBike, city eBike, cargo eBike, and more

Less is more

The compact LED Controller creates space on your handlebars and ensures a clean and tidy look.

Open overlay

Everything under control

Control your eBike comfortably with just a small thumb movement – so there’s no need to take your eyes off the road.

Open overlay

Charge when you need

Simply charge your smartphone while riding and stay flexible for whatever your day brings.

Open overlay

Further benefits

Cropped view of the LED controller with highlighted LEDs.

A complete overview

The LEDs can be clearly distinguished thanks to their colours. A sensor automatically adapts the brightness to the ambient light. Allowing them to remain easily recognisable in the sun, while also not dazzling you in the dark.

Close-up of an eBike handlebar focusing on the Bosch LED controller.

Always reliable – no matter where you are

The closed clamp holds the LED Controller firmly in place on the handlebars and ensures stability that lasts. Protected to IP55 standard, it can easily withstand dust and water splashes. The LED Controller is powered by the eBike system, and the battery can be replaced if needed.

Close-up of an eBike handlebar with a focus on the Bosch Intuvia display 200.

A clever combination

The LED Controller is fully networked in the smart system. Simply combine it with a display or the SmartphoneGrip to keep an eye on ride data and see the battery level as an exact percentage.²

Walk assistance and hill start assist

Help on hills

Hill start assist

Put your foot on the pedal. Press and hold the minus button for longer than one second. Pedal and pick up speed.

The walk assistance

Press and hold the minus button for longer than one second and push the eBike. Hill Hold is active when you stop.

1 / 2

Other features

Determine the range yourself

With Range Control, you can use the eBike Flow app to determine the battery arrival charge. Your eBike intelligently adjusts the support to ensure the desired remaining range.

View of a smartphone showing the battery level being set for when the goal is reached via the eBike Flow app.

Theft protection

Our digital functions such as eBike Lock and eBike Alarm act as a deterrent and protect your eBike even better against theft.

Protecting your eBike

Focus on a smartphone being held in the hand. The screen displays the FlowApp with the BatteryLock function activated. In the background, you see an eBike handlebar with SmartphoneGrip Vertical.

Perfectly coordinated

Customise your riding modes from within the eBike Flow app. Determine e.g. support, dynamics and torque. Choose your four favourite modes and optimise your performance for a perfectly tuned riding experience.

View of a smartphone where you select your four favorite riding modes.

Always up-to-date

Updates ensure that your eBike is always up to date and gets even better. You can simply download new eBike functions and transfer them to your eBike via Bluetooth.

A person holds a smartphone near their eBike and installs updates using the smartphone app.
1 / 4

Technical data

Filteroptionen
New
LED Controller
SystemThe smart system
Screen sizen/a
Colour screenNo
Max. typical brightnessNo
Handlebar diameter (with Display Mount kit)22,2 mm
Type of protectionIP55, protected against dust and water jets
Operating temperature- 5 °C to 40 °C
Power supply (with eBike system)eBike battery/integrated battery
Charging station for external devicesvia USB-C® connector with up to 10 watts*⁹
Dimensions (H x W x D)27 x 52 x 42 mm
WeightApprox. 28 g
Brightness controlYes
Notification tonesNo
Number of buttons5 and On/Off
LanguagesNo

*¹ A smartphone is required and must be provided by the user
*² Only applies to SmartphoneGrip
*³ Suitable for smartphones incl. Camera bump and case with the following dimensions (L x W x H): 123 - 175 mm x 67 - 88 mm x 6.8 - 13 mm and a total weight of up to 276 g incl. cover. Not suitable for wallet cases.
*⁴ Without clamp
*⁵ Manually adjustable (backlight is not permanently on)
*⁶ Only applies to SmartphoneGrip Vertical.
*⁷ The USB-C® cable is not included in the scope of delivery.
*⁸ Suitable for smartphones incl. camera body and case with the following dimensions (L x W x D): 135–170 mm x 68–80 mm x 7–12 mm and a total weight of up to 260 g incl. case. Not suitable for foldable smartphones and smartphones with flip covers/cases. Depending on the case, the inductive charging feature may be limited.
*⁹ Depending on the drive unit installed in the eBike and the devices connected to it (e.g. high beam lights), charging may not be possible, or may only be possible to a limited extent.
*¹⁰ Without mount
*¹¹ Automatic brightness via light sensor or manually adjustable

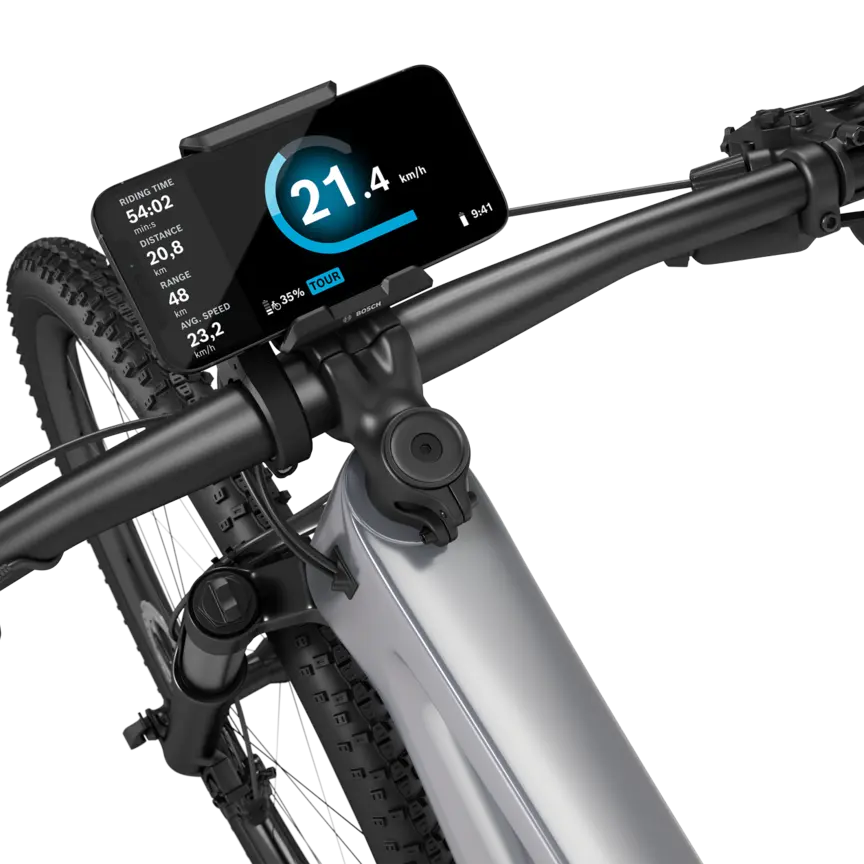

A black eBike positioned against a white background, featuring a SmartphoneGrip mounted on the handlebar.Zoom in on the handlebars of a free-cut eBike, where a Kiox 300 is visible.A silver eMountain bike with a black handlebar stands isolated against a white background. A Kiox 500 is mounted on the handlebar. The display shows the speed in km/h, the battery level, and the riding mode.

Can be flexibly expanded

The LED Controller allows you to flexibly expand your eBike. Use one of our displays to keep an eye on all ride data and enhance your riding experience.

Retrofit displays

FAQs

The LED Controller is the compact and intuitive control unit from Bosch for eBikes with the smart system. It controls all the core functions of the eBike and delivers the most important information - e.g. battery level and riding mode.

The LED Controller gives you full control over your eBike. You can control all important riding functions using the ergonomically positioned buttons. LEDs show the battery level, riding mode and other information, the brightness automatically adjusts to the ambient light. The LED Controller also offers an USB-C® charging function for smartphones.

The LED Controller is 65 % smaller than its predecessor, the LED Remote. Its design is not just compact, but also ergonomically optimised. The LED Controller therefore maximises functionality while minimising size.

Yes, the LED Controller has an integrated USB-C interface. The USB-C port delivers up to 10 watts of charging power. This means you can charge your smartphone or other devices while riding. The USB-C charging function of the LED Controller depends on the drive unit - ask your specialist dealer.

The LEDs can be clearly distinguished thanks to their colours. An integrated sensor automatically adjusts the brightness of the LEDs to the ambient light, ensuring clear visibility without glare in the dark and in sunshine.

It is operated using the ergonomically positioned buttons. You can control all the important functions without having to take your hands off the handlebars. Tactile and audible feedback from the buttons confirms every action, so you can keep your eyes on the road.

LED Controller

Other models

The LED controller is shown illuminated with green and blue LEDs.New

LED Controller

Keeping your handlebar clear. More functionality.

  • The smart system
  • On the handlebar
  • LED indicators
  • 5 buttons and On/Off
Current product
The Purion 200 is depicted on a white background.

Purion 200

Control unit and display in a single device.

  • The smart system
  • On the handlebar
  • Diagonal 1.6"
  • Colour screen
About the product
The LED Remote is depicted with a white background.

LED Remote

The smart control centre.

  • The smart system
  • On the handlebar
  • LED indicators
  • 5 buttons and On/Off
About the product
