The Purion 200 is displayed isolated against a white background. The display shows the speed in km/h.

On the handlebar

Compact and robust

1.6 inches

Screen size in the diagonal

Color screen

Optimal resolution and color depth

Customizable

Via the eBike Flow app

Trick Check

Show what you can do: Trick Check makes your skills measurable. Your tricks are automatically recognized, shown live on the display, and your best performances are saved in the eBike Flow app.¹

Discover Trick Check

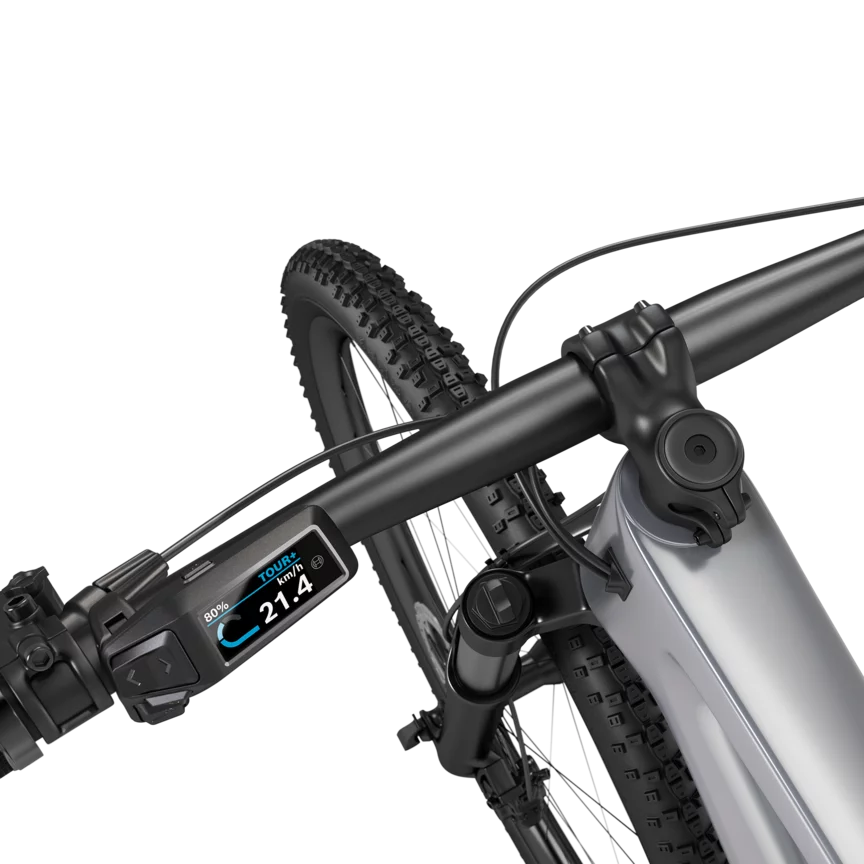

Purion 200 is mounted on the left side of the handlebars, so you can easily control all functions using your thumb.

Open overlay

Purion 200 offers you many important functions for a better riding experience.

Open overlay

Cropped illustration of Purion 200 on a white background.

The Purion 200, showcased against a clean white background in Tour+ mode, takes center stage. Right beside it, you’ll notice a sleek black-filled circle featuring the high beam symbol at its core.

A Purion 200 is displayed on a white background in Tour+ mode. Beside it, there’s a black-filled circle featuring a running figure at its center.

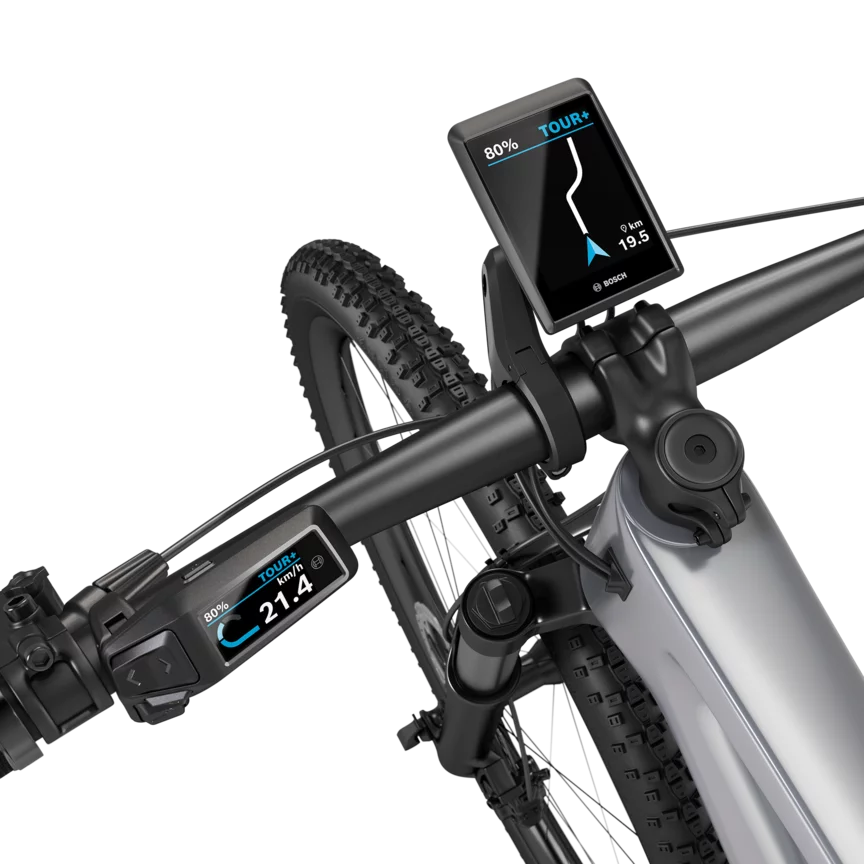

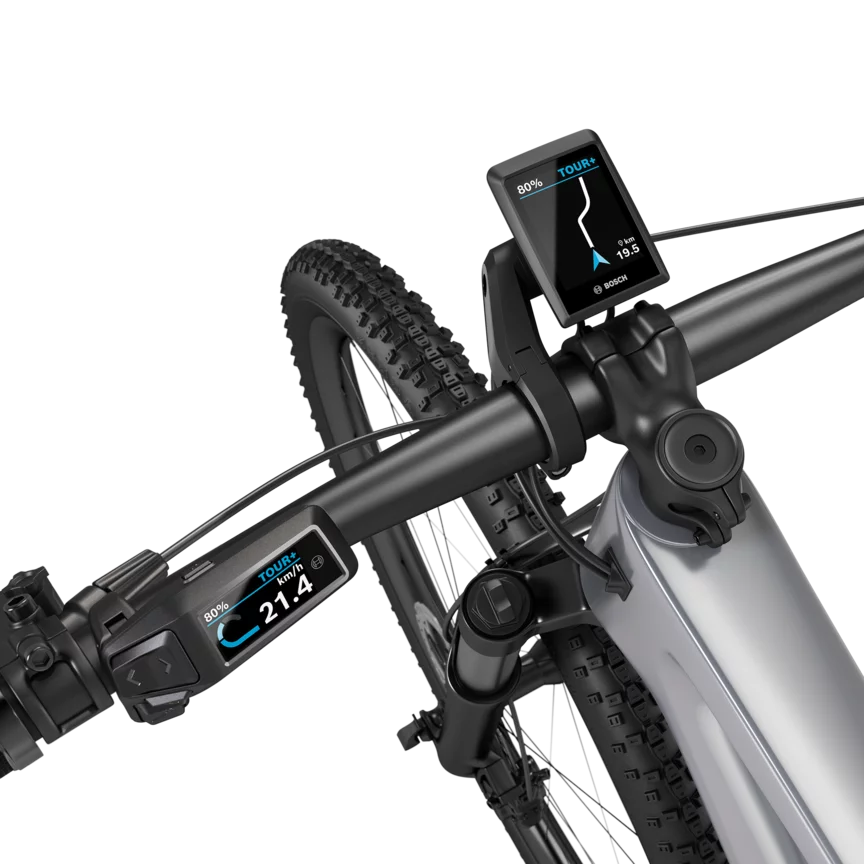

Use another display in addition to Purion 200 to get more information or for better readability.

Open overlay

Your display. Your information.

Speed on the left, heart rate on the right? You can use the display configuration in the eBike Flow app to add, change or delete content and determine the screen sequence yourself.

Purion 200 from Bosch eBike Systems shown as a free-cut. The display brightness is set to 20, so the display appears very dark.

Purion 200 from Bosch eBike Systems shown with a free-cut. The display brightness is set to 40, so the display appears darker.

Purion 200 from Bosch eBike Systems shown with a transparent background. The display brightness is set to 60, which makes the display appear slightly darker.

Purion 200 from Bosch eBike Systems shown with a free-cut design. The display brightness is set to 80, making the display bright and easy to read.

Optimal readability

The high resolution, color depth, and clear structure guarantee that you are able to quickly grasp information. The ambient light sensor automatically adjusts the brightness – making it easy to read whether in sunlight or darkness.

Walk assistance

Hold down the minus button and start pedaling: The smart walk assistance feature helps you push your eBike more easily. If you stop, Hill Hold is activated, preventing your bike from rolling back unintentionally.

An eBike rider drives over paved ground with tram tracks and turns towards a building.

Hill start assist

Put your foot on the pedal and hold down the minus button: With the hill start assist, you can set off again in a relaxed manner, even when fully loaded.

1 / 2

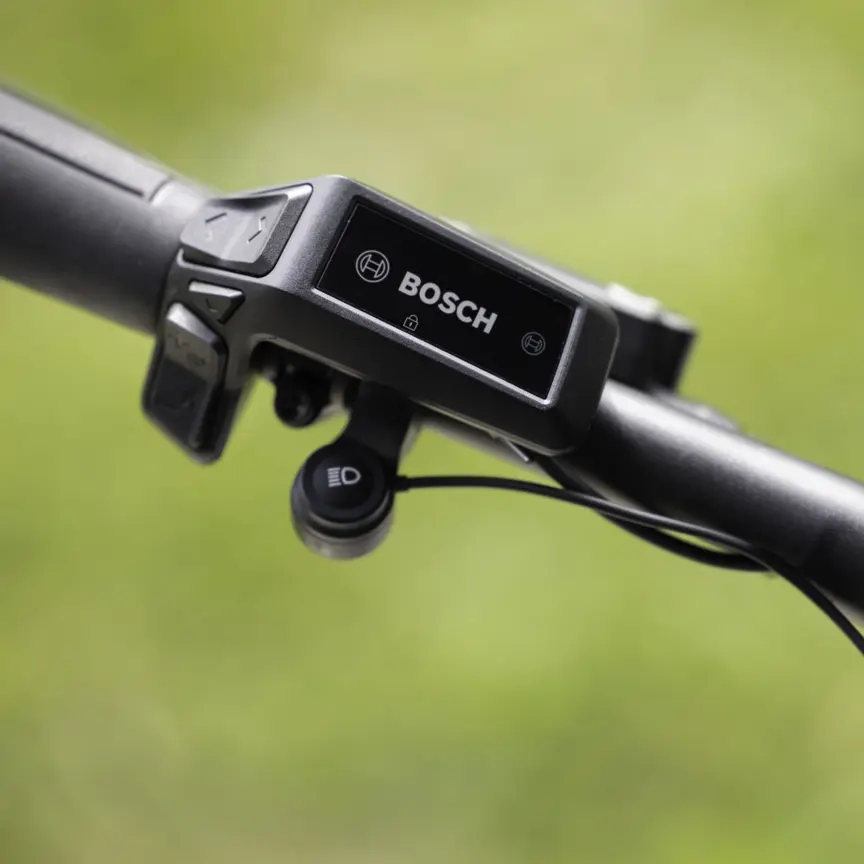

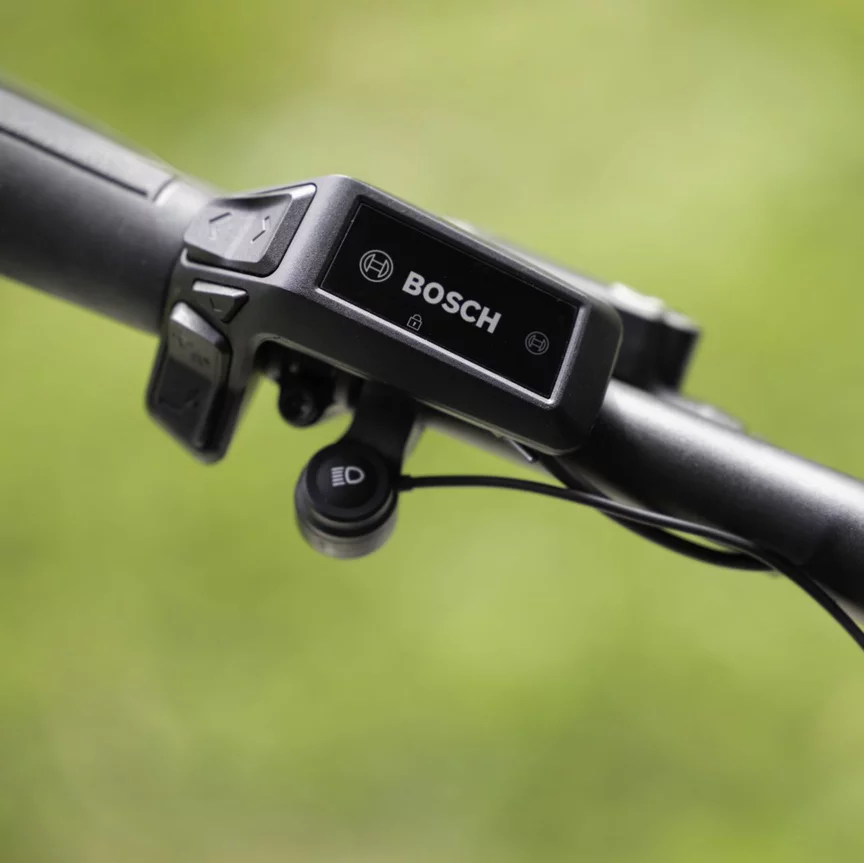

Our digital functions such as eBike Lock act as a deterrent and protect your eBike even more effectively against theft. Purion 200 shows you when eBike Lock is active.

Protect eBike

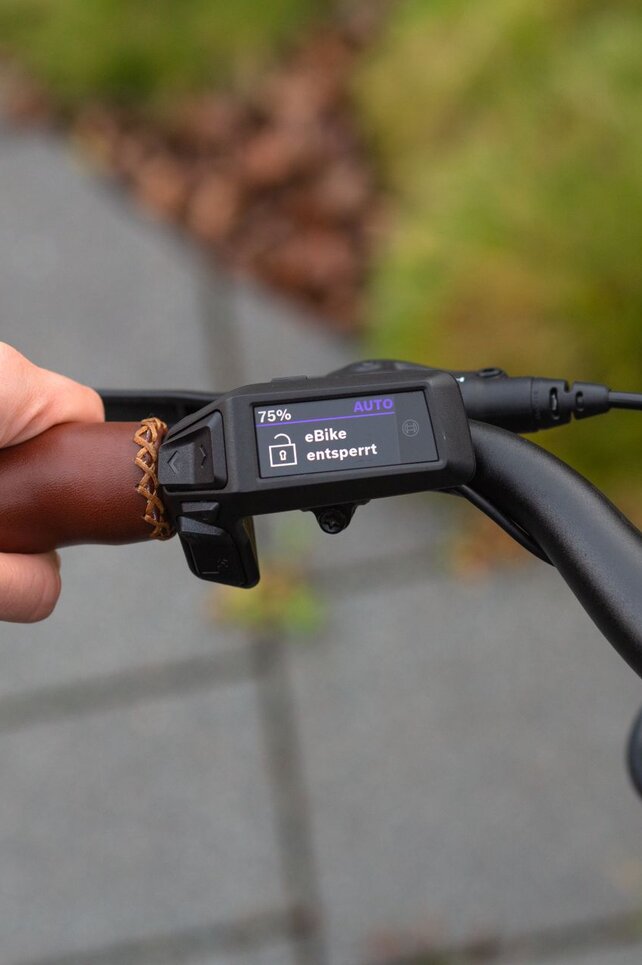

Close-up of a Purion 200 on the handlebars, indicating that the eBike has been unlocked.

Customize your riding modes in the eBike Flow app. Determine support, dynamics, and torque, for example. Choose your four favorite modes for a perfectly coordinated riding experience.

Discover eBike Flow app

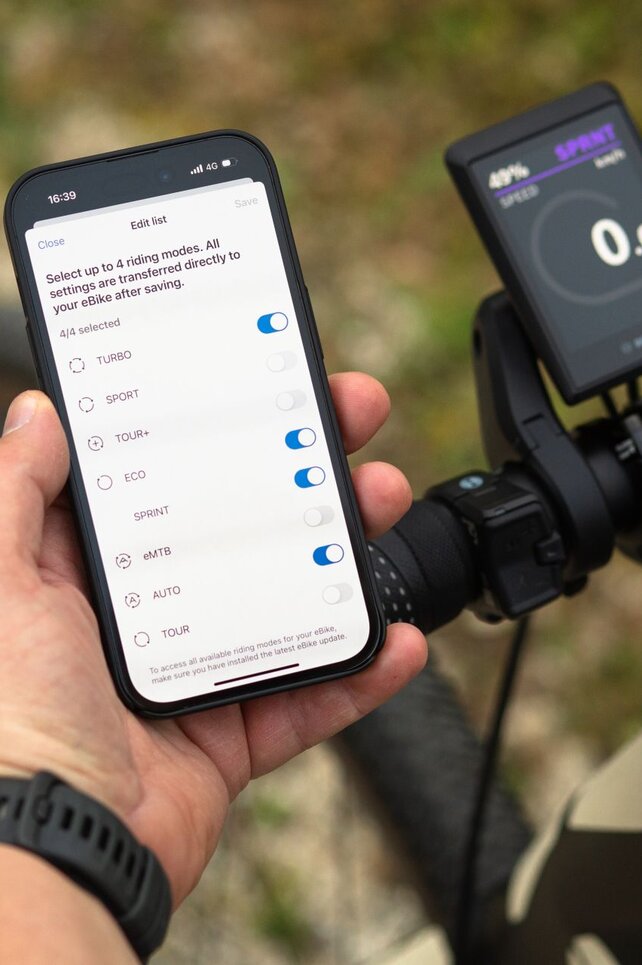

View of a smartphone where the four favorite riding modes are selected.

If your eBike is equipped with Bosch eBike ABS, Purion 200 displays your ABS mode. This ensures the best possible support when you brake.

Discover Bosch eBike ABS

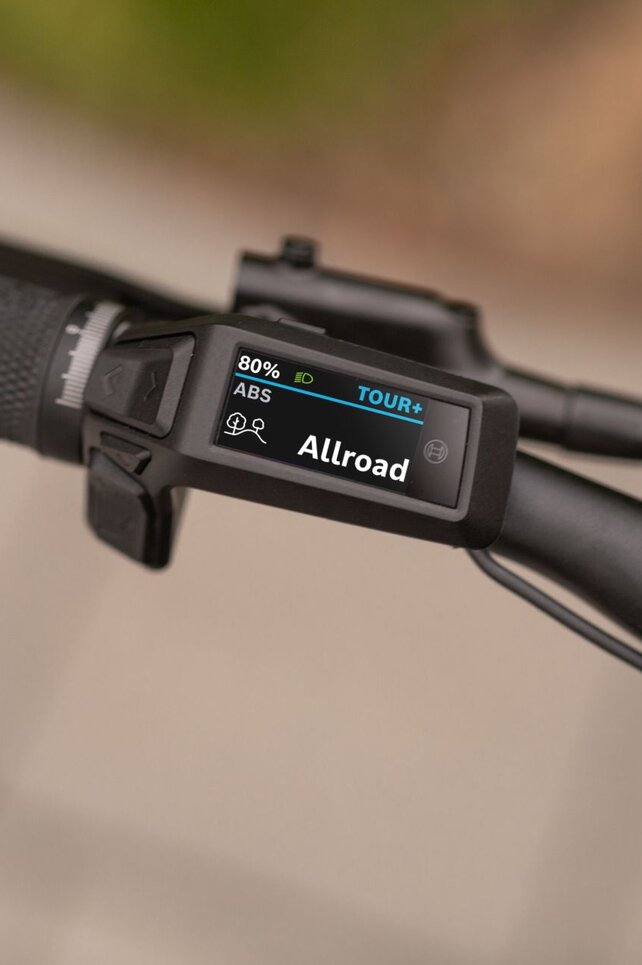

Close-up of a Purion 200 on the handlebars of an eBike with ABS Allroad screen layout.

With eShift, gear changes are easier and more efficient. Depending on the eShift variant, you can shift gears yourself or set eShift to shift gears automatically – whether in the city, in the countryside, with cargo, or when stationary.

Discover eShift

Close-up of a rear wheel focusing on the rear derailleur.

Updates ensure that your eBike is always up to date and its performance is enhanced. You can easily download new eBike functions and transfer them to your eBike via Bluetooth.

A person holds a smartphone near their eBike and installs updates using the smartphone app.

1 / 5

Picture of the Purion 200 as its screens are clicked through.

How to use Purion 200

Find out more

Shot of a smartphone adjusting settings for the Purion 200, which is visible in the background.

Display configuration

Find out more

Technical data
	Purion 200
System	The smart system
Screen size	Diagonal approx. 1.6"
Colour screen	j
Max. typical brightness	1,000 cd/m²
Handlebar diameter (with Display Mount kit)	0.9"
Protection class	IP55, protected against dust and water splash
Operating temperature	23 °F to 104 °F
Power supply (with eBike system)	eBike battery/integrated battery
Charging station for external devices	No
Dimensions (L x W x H)	Approx. 3.5" x 2.6" x 2.1"
Weight	Approx. 1.7 oz.
Brightness control	j
Notification tones	No
Number of buttons	5 and On/Off
Languages	English, German, Dutch, French, Italian, Spanish, Portuguese, Japanese, Korean, Traditional Chinese, Swedish, Danish, Polish, Czech and Norwegian.

^*¹ A smartphone is required and must be provided by the user
^*² Only applies to SmartphoneGrip
^*³ Suitable for smartphones incl. Camera bump and case with the following dimensions (L x W x H): 123 - 175 mm x 67 - 88 mm x 6.8 - 13 mm and a total weight of up to 276 oz. incl. cover. Not suitable for wallet cases.
^*⁴ Without clamp
^*⁵ Manually adjustable (backlight is not permanently on)
^*⁶ Only applies to SmartphoneGrip Vertical.
^*⁷ The USB-C® cable is not included in the scope of delivery.
^*⁸ Suitable for smartphones including camera bump and case with the following dimensions (L x W x D): 5.3-6.7" x 2.7-3.1" x 0.3-0.5" and a total weight of up to 9.2 oz. incl. cover. Not suitable for foldable smartphones and smartphones with flip covers and case covers. Depending on the case, the inductive charging function may be limited.
^*¹⁰ without mount
^*¹¹ automatic brightness via light sensor or manually adjustable

Conveniently extendable

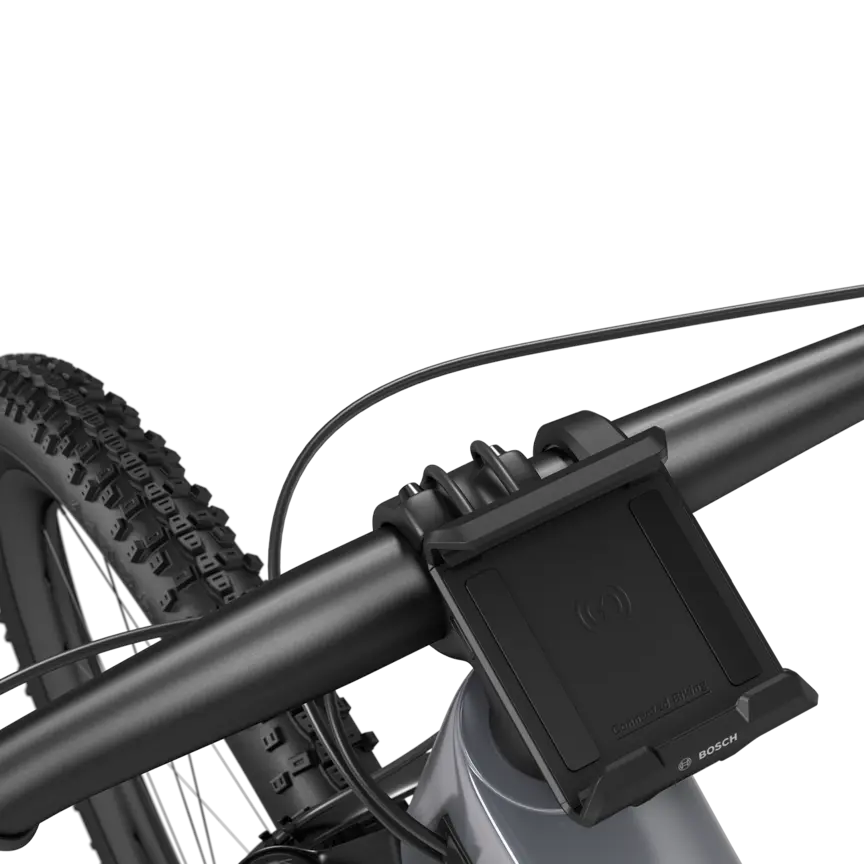

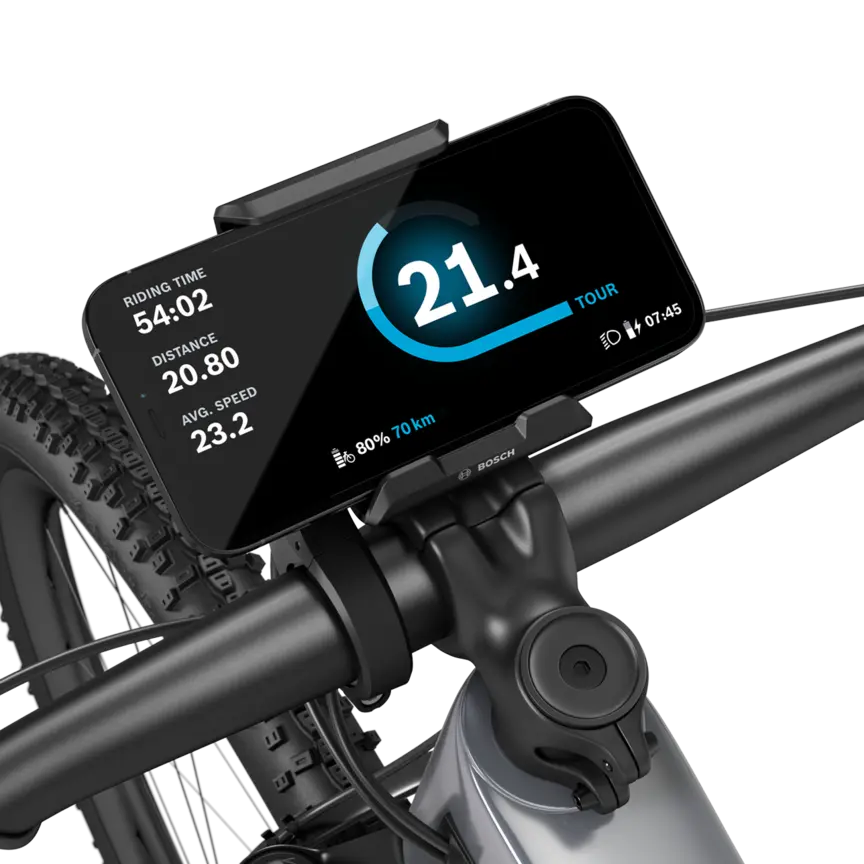

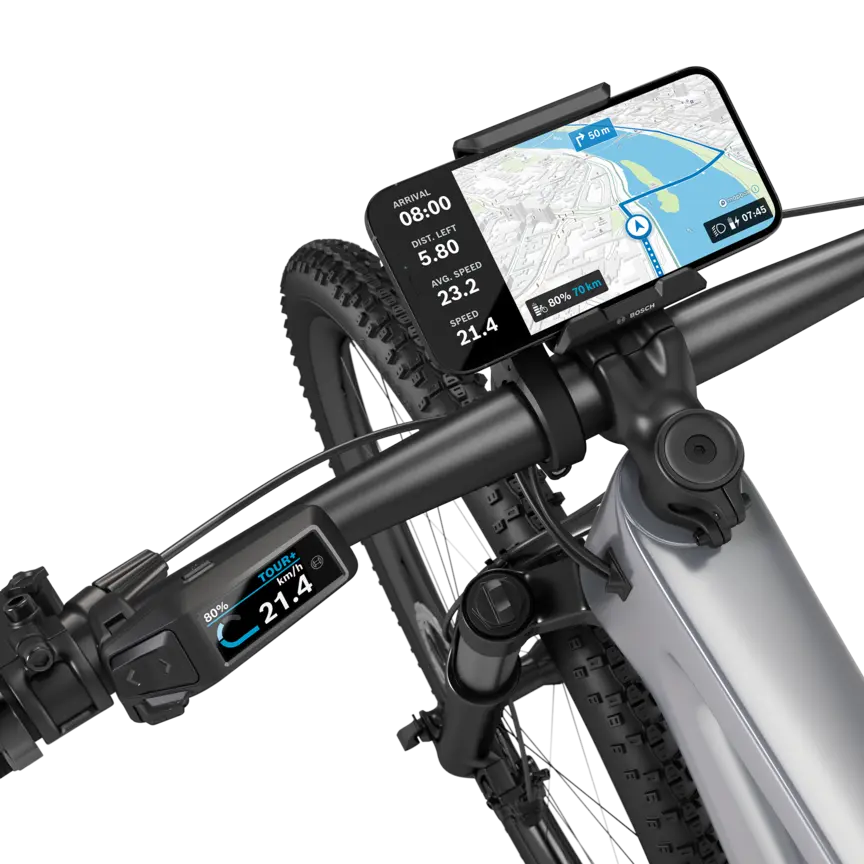

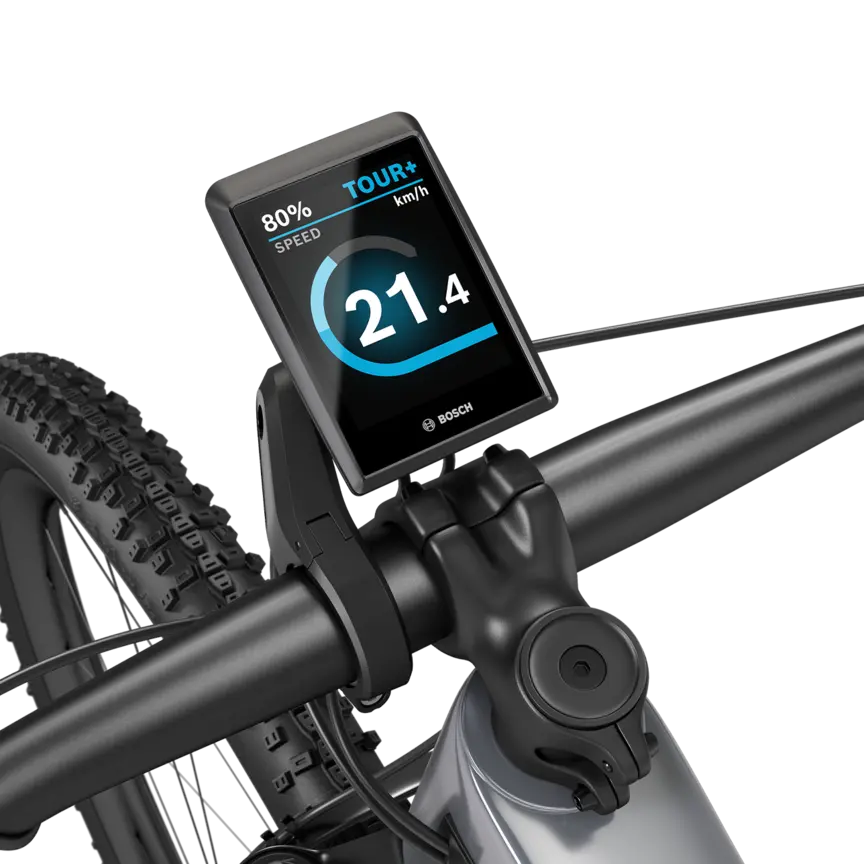

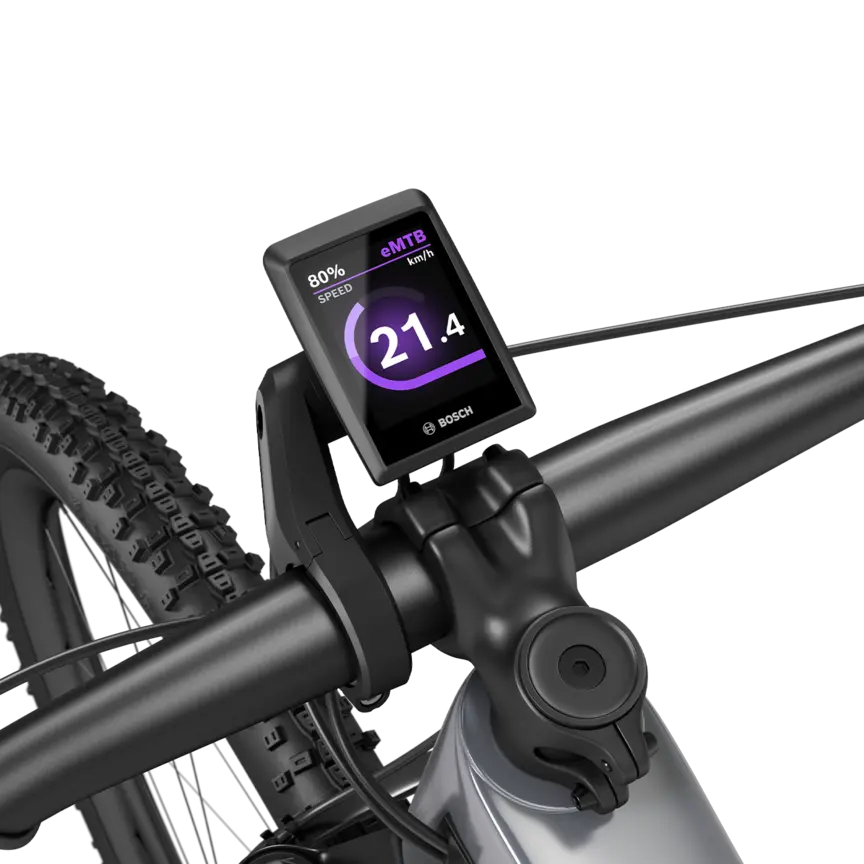

Purion 200 is compatible with other displays. Simply retrofit your eBike with the smart system using a Kiox 300, Kiox 500, or the SmartphoneGrip.

Retrofit display

Purion 200

Control unit and display in one.

The smart system
On the handlebar
Diagonal 1.6”
Color screen

Current product

LED Remote

The smart control center.

The smart system
On the handlebar
LED indicators
5 buttons and On/Off

Go to product

All displays

Trick Check works with the Performance Line CX (BDU384Y), Performance Line CX-R (BDU384Y), Performance Line CX Race (BDU374Y), Performance Line CX (BDU374Y) and Performance Line SX (BDU314Y) and on the following displays: Kiox 300, Kiox 400C, Kiox 500, Purion 200, Purion 400. Trick Check is not active by default on the Kiox 300, Kiox 500 and Purion 200 displays and must be activated manually under > "Settings > Display > Trick Check".
