A woman wearing a helmet rides a modern eBike across a sunny cobblestone square. In the background, you can see a historic building and pink flowering trees.

Cropped Active Line Plus on a light gray background.

Max. torque

100

600

Max. motor power

140

340

Max. support

0.8

7.1

lbs

Rounded weight

The Active Line Plus is perfect for relaxed rides – without annoying background noise.

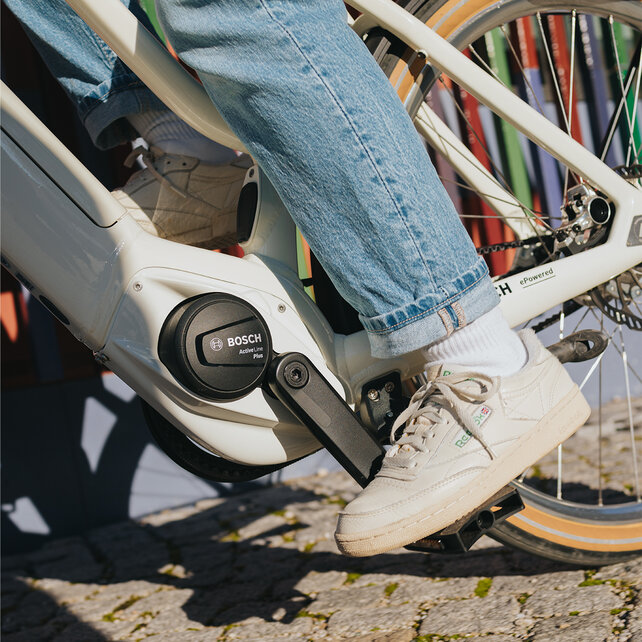

Close-up of Active Line Plus on a white eBike.

The Active Line Plus is smoothly adapted – for a natural riding experience.

Open overlay

A woman wearing a helmet rides a white eBike in an autumn park.

With Active Line Plus, you automatically enjoy optimum support in Auto mode.

Open overlay

An eBiker wearing a helmet rides along an asphalt path beside the façade of a large, modern building.

Brake with confidence

With the Active Line Plus with a hub gear system, you have the option of using a backpedal brake. This gives you peace of mind when braking – particularly when giving hand signals and decelerating at the same time.

A woman rides her eBike on a red bike lane in the city.

Robust and reliable

The gearbox of the Active Line Plus is designed for durability and robustness. So there's no need to worry about the weather or dirt. Instead, simply enjoy daily rides and special excursions.

A woman wearing a helmet rides her white eBike along a cobbled street.

Walk assistance and hill start assist

Walk assistance and hill start assist make light work of steep inclines, whether urban or rural. It actively supports you and prevents you from rolling back unintentionally.

Our digital functions act as a deterrent and protect your eBike against theft. Use the free eBike Lock additional theft protection or the eBike Alarm and Battery Lock premium services that are included in the Flow+ subscription.¹

Protect eBike

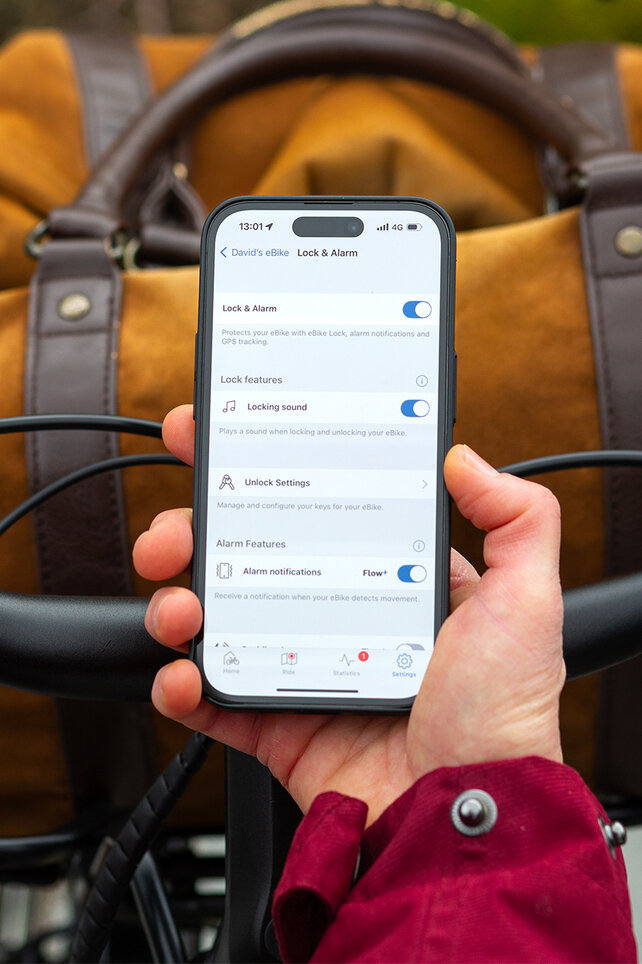

Looking over the shoulder of a person holding a smartphone and adjusting settings for eBike Lock and the alarm in the eBike Flow app.

Particularly while in the city, you need to be able to stop with pinpoint accuracy at all times. The Bosch eBike ABS helps you with this: It stabilizes and regulates your braking in a targeted manner – for more control in unexpected situations.

Discover Bosch eBike ABS

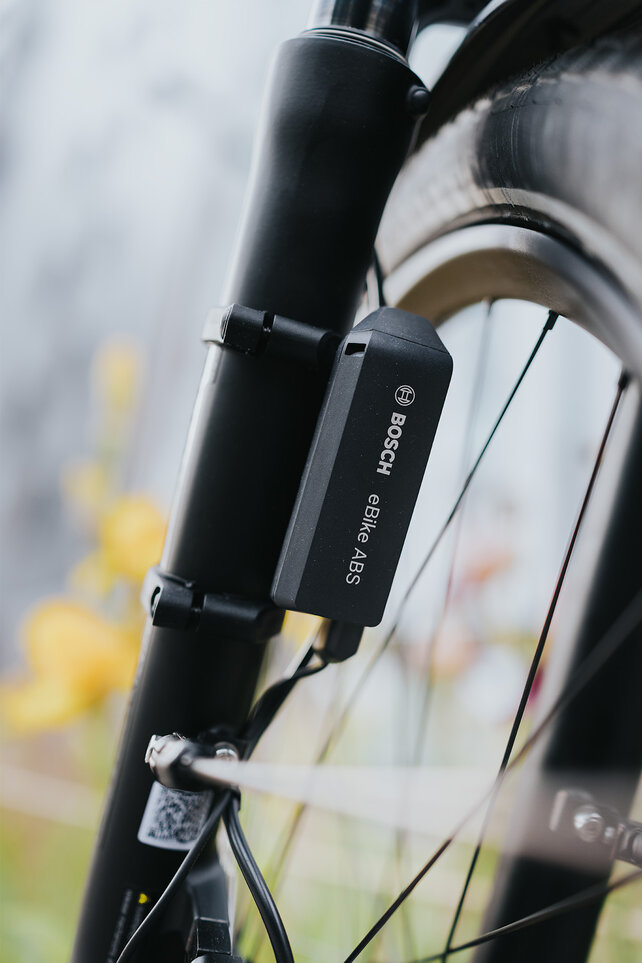

Close-up of a Bosch eBike ABS on an eBike.

From traffic light to traffic light or village to village: Traffic and routes can be challenging. Simply hand over the task of changing gears to eShift – so you can concentrate solely on eBiking.

Discover eShift

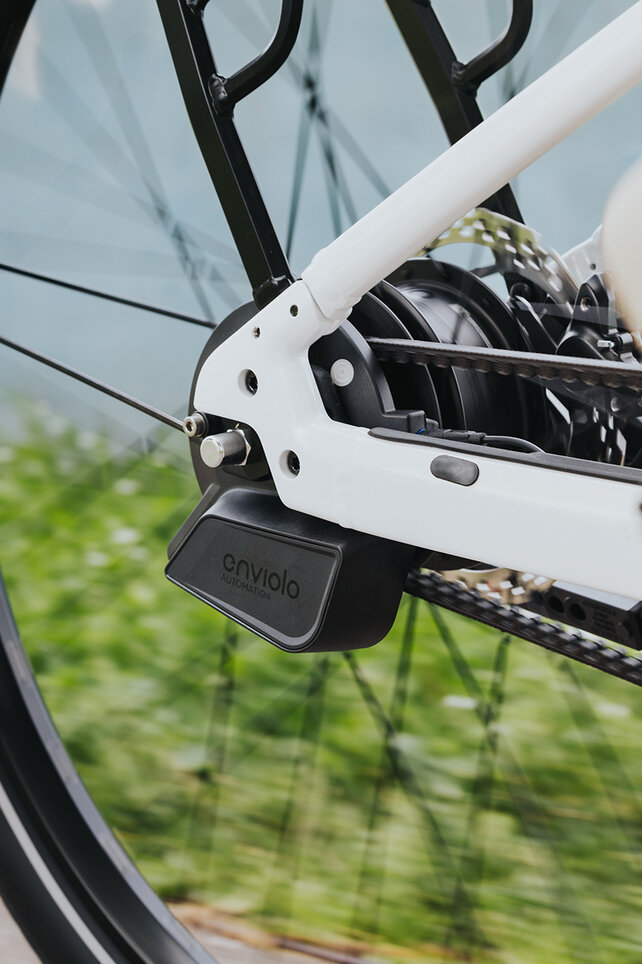

Close-up of a rear wheel focusing on the rear derailleur.

Whether on your usual route to work or on new routes: Thanks to Range Control, you don't have to worry about the battery level. Plan your route – without range concerns.

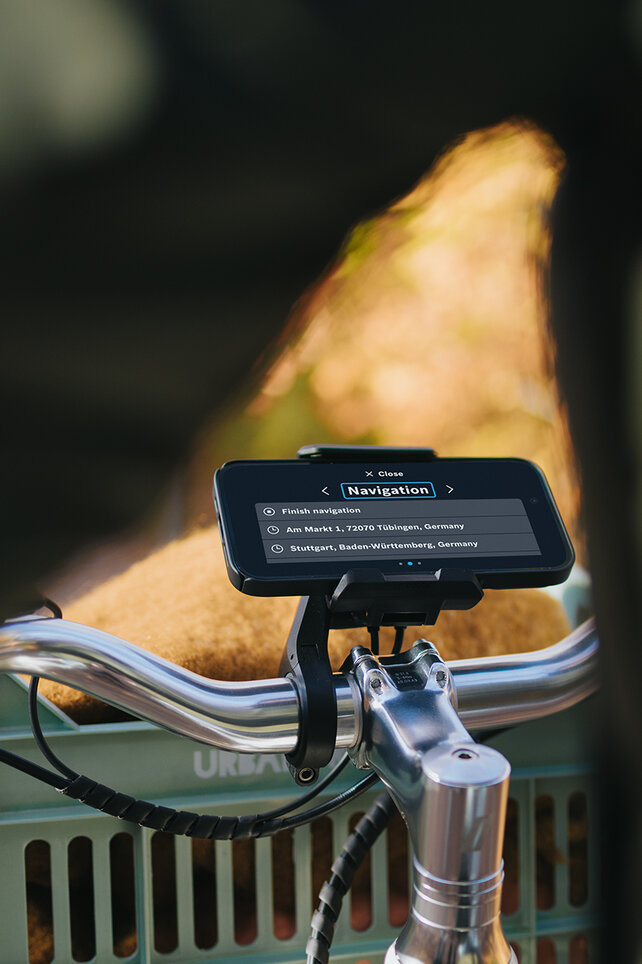

View of the handlebars of an eBike with SmartphoneGrip and the navigation setting open on the smartphone.

Thanks to regular updates, your eBike is always kept up to date – and even gets better over time. You simply download new features, which you can then use straight away.

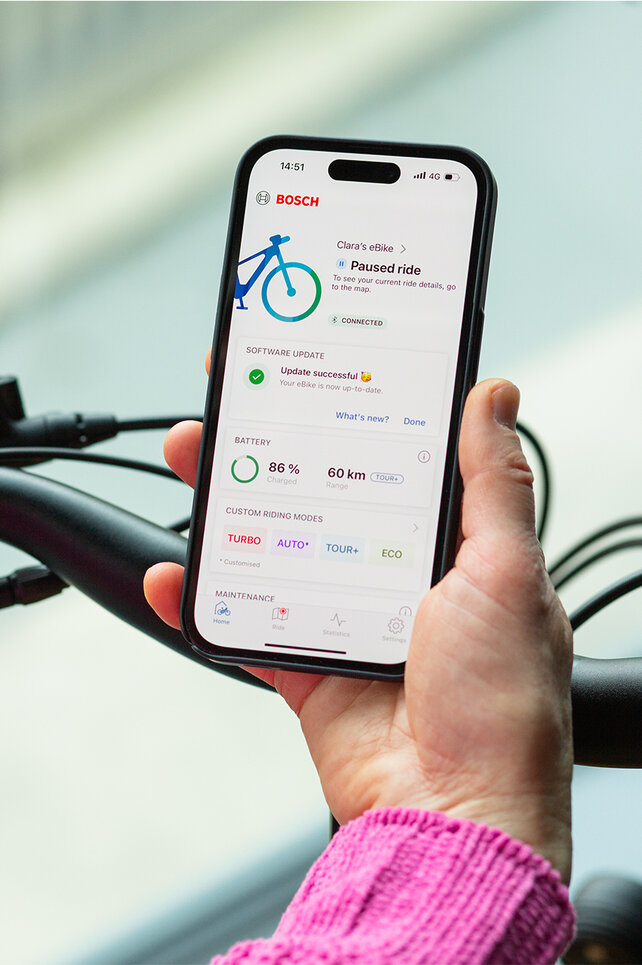

Over-the-shoulder view of a person holding a smartphone with the eBike Flow app open.

1 / 5

Intuvia 100

The intuitive display supports you optimally on your ride, and is also easy to read.

Go to product

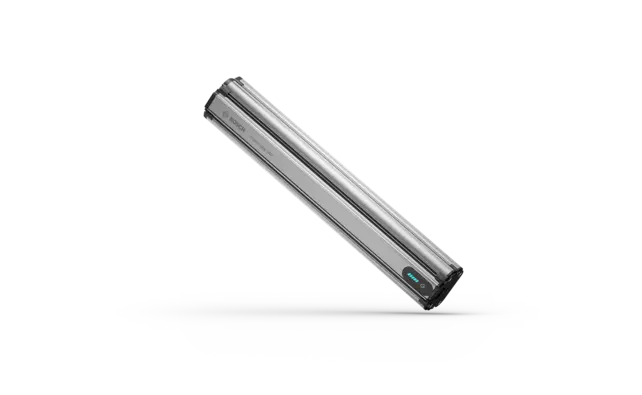

PowerTube 540

With about 540 watt hours, the new PowerTube 540 offers more range than the PowerTube 500 with the same weight – allowing longer rides in the city and beyond.

Go to product

ConnectModule

BCM3100

The basis for digital theft protection: As a technology permanently installed on the eBike, it ensures that your eBike is protected online and digitally.

Go to product

Bosch eBike ABS

The Bosch eBike ABS helps you brake more effectively and safely – whether you’re in the city, dirt bike paths, or on trails.

Go to product

Technical data
	Active Line Plus (BDU334Y)¹³
eBike system	The smart system
Shifting system type	Derailleur system, hub gear system
Maximum support (%)	340 %
Maximum possible drive torque	50 Nm
Start-up behavior	smooth, calm
Max. supported speed	20 mph
Backpedal braking	optional
Walk assistance with Hill Hold	y
Hill start assist with Hill Hold	y
Gear shift detection	Hub gear system: no Derailleur system: yes
Weight, approx.	7.1 lbs
Rated continuous output	250 W
Maximum power	600 W
Max. power at a cadence of 70 rpm	370 W
Max. power-to-weight ratio, approx.	85 W/lb

¹ Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

² Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

³ Maximum values: deviations possible, depending on the hub gear system and battery. The values can be set individually to a limited extent using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁴ Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁵ Only available in New Zealand and the USA. Maximum values: deviations possible, depending on the hub gear system and battery. The max. support of 600% relates to speeds of up to 9.3 mph and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. On delivery, the performance values of this drive unit can be lower. They can be increased and individually adjusted with the help of the eBike Flow app. It should be noted that higher performance values can lead to increased wear and can have a negative impact on the range.
The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. With the help of the individual riding modes, the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception regarding gear shift detection: eShift hubs

⁶ Maximum values: deviations possible, depending on hub gear system and battery. The maximum support of 600% relates to Speeds of up to 20 mph and can be increased in the Race, Turbo, eMTB+, Cargo, and Auto riding modes. The values can be set individually to a limited extent using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer, or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes,
the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception gear shift detection: eShift hubs

⁷ Maximum values: deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁸ Maximum values: deviations possible, depending on the hub gear system and battery. The values can be set individually to a limited extent using the eBike Flow app. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁹ Maximum values: deviations possible, depending on hub gear system and battery. The maximum support of 600% relates to Speeds of up to 20 mph and can be increased in the Race, Turbo, eMTB+, Cargo, and Auto riding modes. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer, or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception gear shift detection: eShift hubs

¹⁰ Maximum values: deviations possible, depending on hub gear system and battery. The maximum support of 600% relates to speeds of up to 20 mph and can be increased in the Race, Turbo, eMTB+, Cargo, and Auto riding modes. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer, or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception gear shift detection: eShift hubs

^¹¹ Only available in New Zealand and the USA. Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

¹² Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

¹³ Maximum values: deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. There is no backpedal function with the derailleur system, but it is optional for the hub system.
Exception regarding gear shift detection: eShift hubs

¹⁴ Maximum values: deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. There is no backpedal function with the derailleur system, but it is optional for the hub system.
Exception regarding gear shift detection: eShift hubs

¹⁵ Only available in New Zealand and the USA. Maximum values: deviations possible, depending on the hub gear system and battery. The max. support of 600% relates to speeds of up to 9.3 mph and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

¹⁶ The weight refers exclusively to the motor weight of the Hub Line – without control unit and cadence sensor. No support factor: The support is based on intelligent sensor fusion, which is why no support factor is specified. Maximum values: Deviation possible depending on battery. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated.
