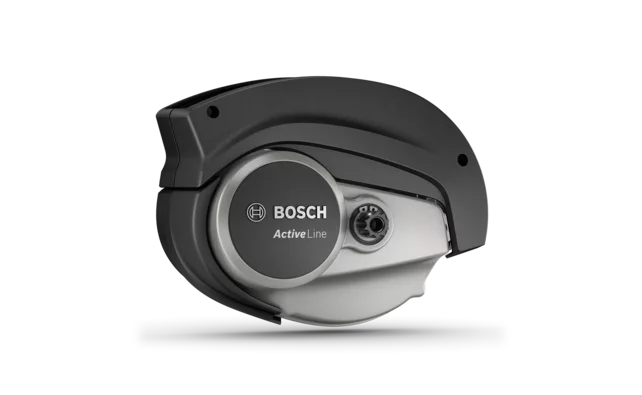

eBike motor Active Line cropped on white background.

Max. torque

100

290

Max. motor power

100

250

Max. support factor

0.8

6.4

lbs

Rounded weight

The well-balanced drive system

The Active Line is ideal for all those who want moderate support during everyday eBike use. The Active Line also makes the perfect team with the Purion, Intuvia, Kiox, Nyon computers and with the Bosch eBike system 2 Bosch eBike batteries. Experience controlled acceleration with a barely audible drive.

eBikes with Active LineTo the models

Silent cruising

A lightweight and quiet Bosch motor provides even more fun without annoying background noise.

Three eBike riders riding behind each other pass a harbor, in the background you can see ships.

Easy handling

The innovative drive concept makes the Drive Unit less than 6.6 lbs and, thanks to its compact size, improved integration into the bicycle frame. The low center of gravity in the middle of the eBike ensures easy handling. The Active Line is compatible with derailleur or hub gears. The optional backpedal function for hub gears helps you to brake extra comfortably.

Close-up of Active Line on a turquoise eBike.

Award winning product design

Flowing forms and smooth lines: The eBike system Active Line received the Red Dot Award for Product Design 2017.

Technical data
	Active Line (BDU330)³
eBike system	Bosch eBike system 2
Shifting system type	Derailleur system, hub gear system
Maximum support (%)	250 %
Maximum possible drive torque	40 Nm
Start-up behavior	smooth
Max. supported speed	20 mph
Backpedal braking	Derailleur system: no Hub gear system: optional
Walk assistance with Hill Hold	y
Hill start assist with Hill Hold	y
Gear shift detection	Hub gear system: no Derailleur system: yes
Weight, approx.	6.4 lbs
Rated continuous output	250 W
Maximum power	290 W
Max. power at a cadence of 70 rpm	290 W
Max. power-to-weight ratio, approx.	45 W/lb

¹ Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

² Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

³ Maximum values: deviations possible, depending on the hub gear system and battery. The values can be set individually to a limited extent using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁴ Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁵ Only available in New Zealand and the USA. Maximum values: deviations possible, depending on the hub gear system and battery. The max. support of 600% relates to speeds of up to 9.3 mph and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. On delivery, the performance values of this drive unit can be lower. They can be increased and individually adjusted with the help of the eBike Flow app. It should be noted that higher performance values can lead to increased wear and can have a negative impact on the range.
The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. With the help of the individual riding modes, the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception regarding gear shift detection: eShift hubs

⁶ Maximum values: deviations possible, depending on hub gear system and battery. The maximum support of 600% relates to Speeds of up to 20 mph and can be increased in the Race, Turbo, eMTB+, Cargo, and Auto riding modes. The values can be set individually to a limited extent using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer, or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes,
the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception gear shift detection: eShift hubs

⁷ Maximum values: deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁸ Maximum values: deviations possible, depending on the hub gear system and battery. The values can be set individually to a limited extent using the eBike Flow app. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

⁹ Maximum values: deviations possible, depending on hub gear system and battery. The maximum support of 600% relates to Speeds of up to 20 mph and can be increased in the Race, Turbo, eMTB+, Cargo, and Auto riding modes. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer, or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception gear shift detection: eShift hubs

¹⁰ Maximum values: deviations possible, depending on hub gear system and battery. The maximum support of 600% relates to speeds of up to 20 mph and can be increased in the Race, Turbo, eMTB+, Cargo, and Auto riding modes. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer, or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider via the eBike Flow app. Exception gear shift detection: eShift hubs

^¹¹ Only available in New Zealand and the USA. Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

¹² Maximum values: deviations possible, depending on the hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customised using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

¹³ Maximum values: deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. There is no backpedal function with the derailleur system, but it is optional for the hub system.
Exception regarding gear shift detection: eShift hubs

¹⁴ Maximum values: deviations possible, depending on the hub gear system and battery. The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app. There is no backpedal function with the derailleur system, but it is optional for the hub system.
Exception regarding gear shift detection: eShift hubs

¹⁵ Only available in New Zealand and the USA. Maximum values: deviations possible, depending on the hub gear system and battery. The max. support of 600% relates to speeds of up to 9.3 mph and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher power values can lead to increased wear and have a negative effect on the range. Actual power is marginally less than 750 W to ensure regulatory compliance.
The eBiker can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the specialist dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the eBiker, via the eBike Flow app.
Exception regarding gear shift detection: eShift hubs

¹⁶ The weight refers exclusively to the motor weight of the Hub Line – without control unit and cadence sensor. No support factor: The support is based on intelligent sensor fusion, which is why no support factor is specified. Maximum values: Deviation possible depending on battery. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated.
