Max. torque

100

415

Max. motor power

250

Max. support factor

0.8

3.2

Rounded weight

Equipped for everyday and adventure rides

The Active Line Plus is ideal for all those who want moderate support with smooth, agile start-up behavior on everyday and longer rides. The Active Line Plus makes the perfect team with the Purion, Intuvia, Kiox, Nyon computers and the Bosch eBike system 2 Bosch eBike batteries.

eBikes with Active Line PlusTo the models

A person rides a black e-bike and is wearing a white helmet and black clothing. In the background, there are parked cars and a building with white stone walls and several windows.

Dynamic acceleration

The Active Line Plus provides powerful but dynamic support. It adapts its power delivery to your riding behavior – thanks to the multi-sensor concept with more than 1,000 measurements per second. Enjoy natural and dynamic acceleration with minimal pedal resistance in Off mode or over 15 mph.

A woman enjoys a ride on her eBike along a riverside path, with the Frankfurt skyline in the background.

Easy handling

The innovative drive concept makes a Drive Unit weight of less than 7 lbs and improved integration into the bicycle frame, thanks to its compact size. The low center of gravity ensures easy handling. The Active Line is compatible with derailleur or hub gears. The optional backpedal function for hub gears helps you to brake extra comfortably.

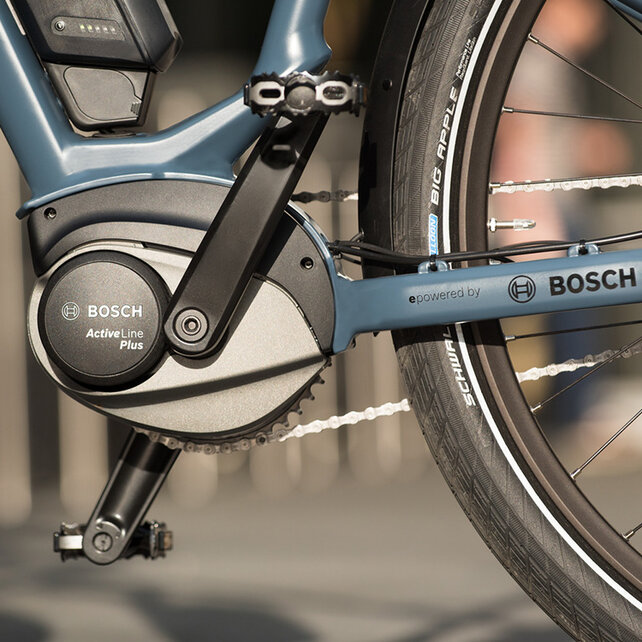

Close-up of Active Line Plus on a blue eBike.

Award winning product design

Flowing forms and harmonious lines: The eBike system Active Line Plus received the Red Dot Award for Product Design 2017.

Technical data
	Active Line Plus (BDU380)⁷
eBike system	Bosch eBike system 2
Shifting system type	Derailleur system, hub gear system
Max. support (%)	250 %
Maximum possible drive torque	50 Nm
Start-up behavior	Harmonious and agile
Max. supported speed	25 km/h
Backpedal brake	Derailleur system: no, Hub gear system: optional
Walk assist with Hill Hold	x
Hill start assist with Hill Hold	x
Gear shift detection	Hub gear system: no, Derailleur system: yes
Weight, approx.	3,2 kg
Rated continuous output	250 W
Maximum power	415 W
Max. power at a cadence of 70 rpm	365 W
Max. power-to-weight ratio, approx.	130 W/kg

¹Maximum values: Deviations possible, depending on hub gear system and battery. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider, via the eBike Flow app.
Exception gear shift detection: eShift hubs

² Maximum values: Deviations possible, depending on hub gear system and battery. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range.
The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider, via the eBike Flow app.
Exception gear shift detection: eShift hubs.

⁴Maximum values: Deviations possible, depending on hub gear system and battery. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider, via the eBike Flow app.
There is no backpedal function for the derailleur system, but it is optional for the hub gear system.
Exception gear shift detection: eShift hubs

⁵ Maximum values: Deviations possible, depending on hub gear system and battery. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the individual riding modes, the modes can be configured according to the individual needs of the rider, via the eBike Flow app. There is no backpedal function for the derailleur system, but it is optional for the hub gear system.
Exception gear shift detection: eShift hubs

⁶ Maximum values: Deviations possible, depending on hub gear system and battery. The max. support of 600% relates to speeds of up to 15 km/h and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. The values can be set individually to a limited extent using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range.
The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider, via the eBike Flow app.
Exception gear shift detection: eShift hubs

⁷ The various riding modes are activated/deactivated by the bicycle manufacturer and the dealer. A maximum of four riding modes, in addition to Off mode, can be activated in the display. Using the individual riding modes, the modes can be configured according to the individual needs of the rider, via the eBike Flow app. It's not possible to customise your riding mode on speed eBikes.

⁸ Maximum values: Deviations possible, depending on hub gear system and battery. Activation/deactivation of the various riding modes is carried out by the bicycle manufacturer and the dealer. A maximum of four riding modes, in addition to Off mode, can be activated in the display. Using the individual riding modes, the modes can be configured according to the individual needs of the rider, via the eBike Flow app. It's not possible to customise your riding mode on speed eBikes.

⁹ Maximum values: Deviations possible, depending on hub gear system and battery. The max. support of 600% relates to speeds of up to 15 km/h and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes. The performance values of this drive unit may be lower upon delivery. They can be increased and customized using the eBike Flow app. It should be noted that higher performance values can lead to increased wear and have a negative effect on the range.
The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated. Using the custom riding modes, the modes can be configured according to the individual needs of the rider, via the eBike Flow app.
Exception gear shift detection: eShift hubs.

¹⁰ Maximum values: Deviations possible, depending on hub gear system and battery. The max. support of 600% relates to speeds of up to 15 km/h and can be increased in the Race, Turbo, eMTB+, Cargo and Auto riding modes.
The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer.
A maximum of four riding modes, in addition to Off mode, can be activated. The individual riding modes can be configured according to the individual needs of the eBike rider via the eBike Flow app.
Exception gear shift detection: eShift hubs

¹¹ The weight refers exclusively to the motor weight of the Hub Line – without control unit and cadence sensor. The support is based on intelligent sensor fusion, which is why no percentage figure is given for maximum support. Maximum values: Deviation possible depending on battery. The rider can activate/deactivate the riding modes via the eBike Flow app, the bicycle manufacturer or the dealer. A maximum of four riding modes, in addition to Off mode, can be activated.
