Your smartphone as an eBike display

SmartphoneGrip

Digitally connected

Turn your everyday digital companion into a smart display - with the eBike Flow app and SmartphoneGrip.



Optimal navigation

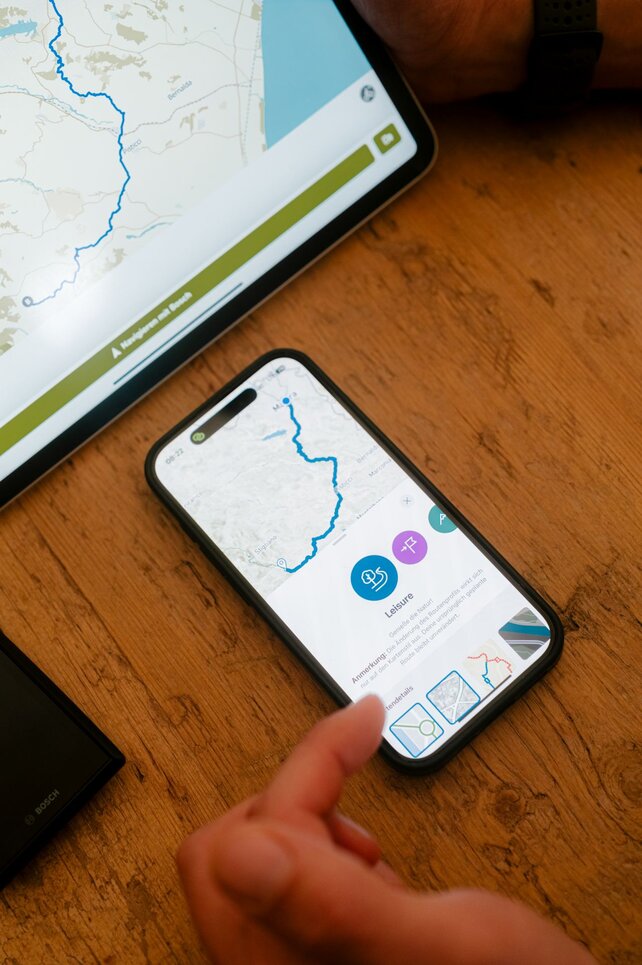

Navigate through the city with ease, and take the fastest route.





Convenient operation

Use the LED Remote or the Mini Remote to control the eBike Flow app on your smartphone more safely and comfortably.



Full flexibility

Out of the city, onto the trail. Thanks to the same interface, you simply replace your smartphone with the SmartphoneGrip with Kiox 300.

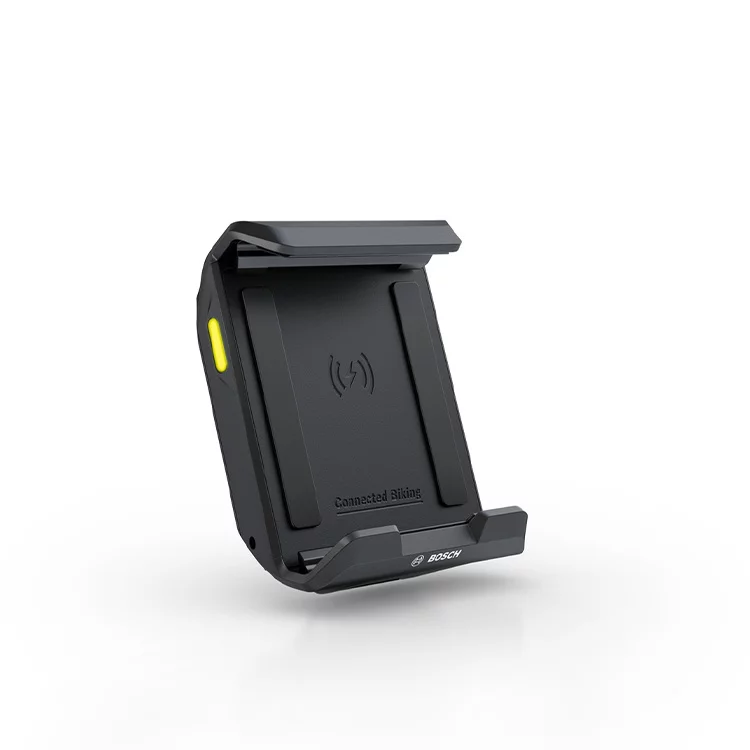

SmartphoneGrip

Your smartphone on the handlebar

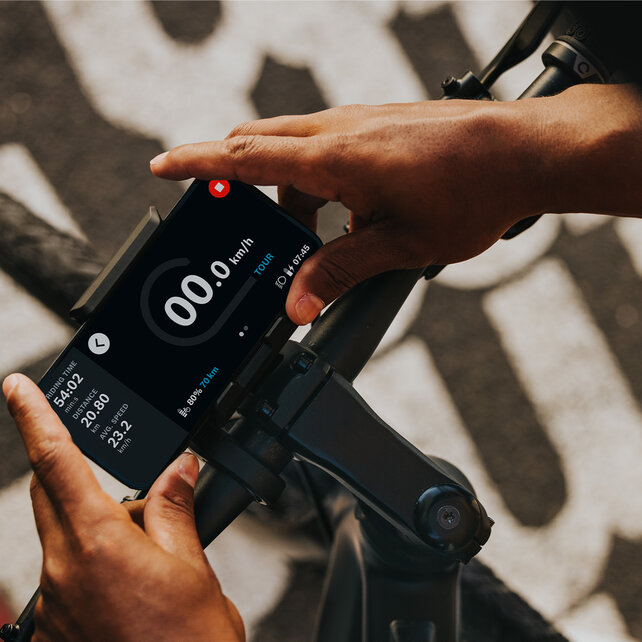

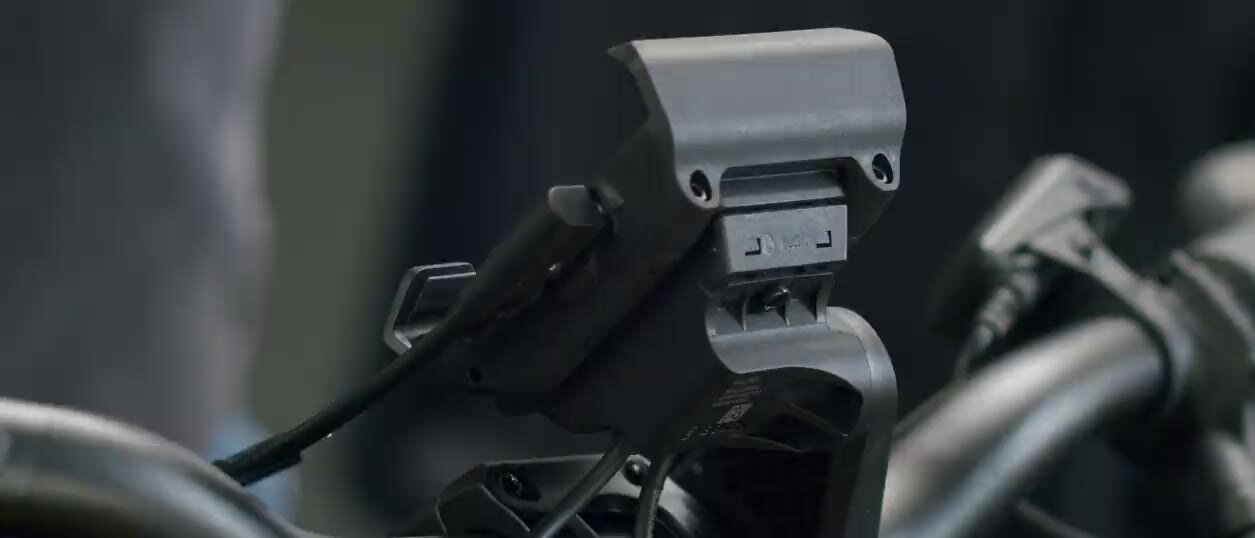

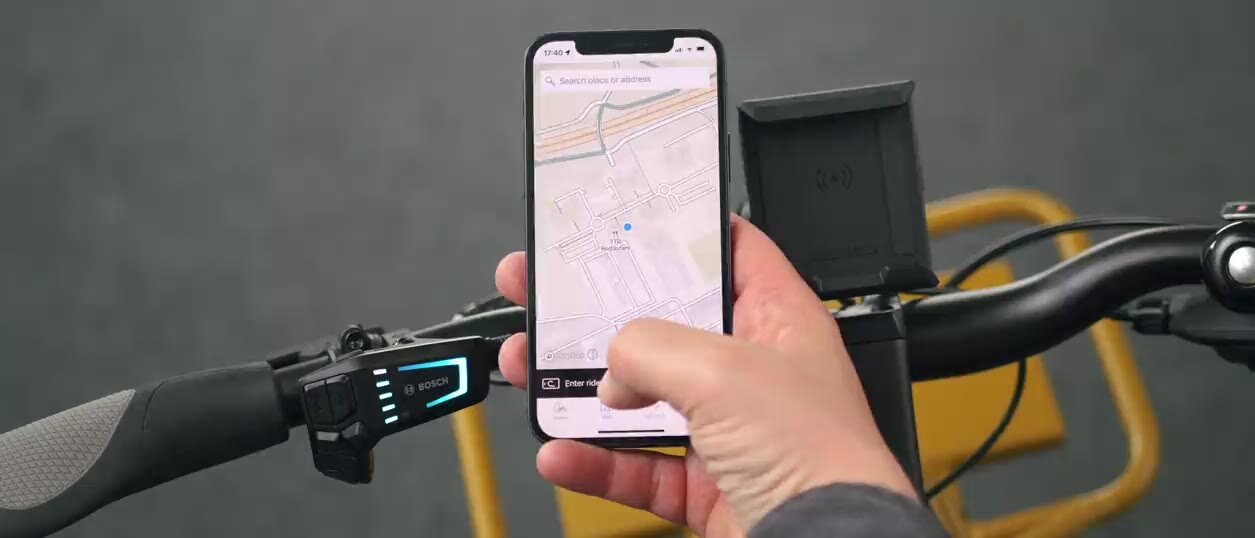

Simply turn your smartphone into an eBike display: Attach the SmartphoneGrip to the handlebar, insert your smartphone, and open the eBike Flow app. While your smartphone is wirelessly charging via the SmartphoneGrip, the eBike Flow app reliably navigates you to your destination. It shows you all the important ride data – from speed and eBike battery status to arrival time.



At a glance

Ride data via the Flow app

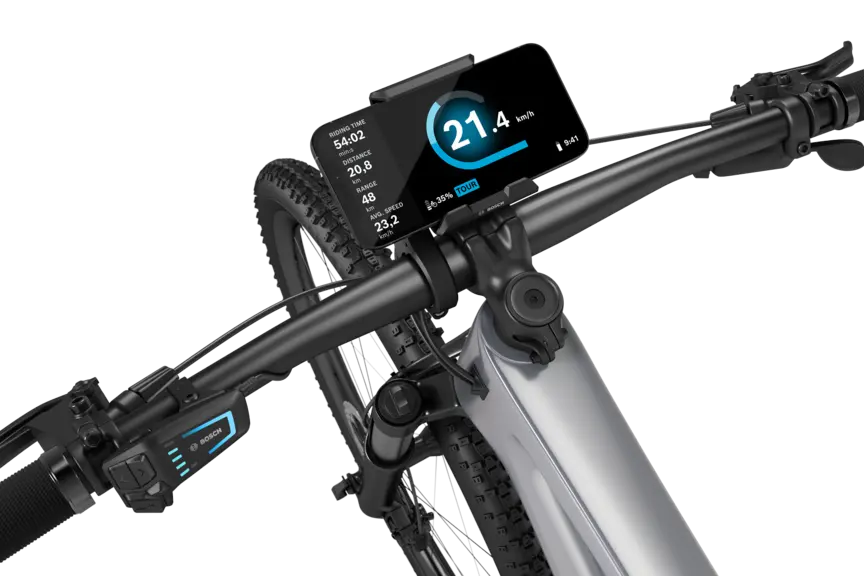

The Ride screen shows your speed, the charge level of the eBike battery, and the remaining range.



Ergonomic control

Operate the eBike Flow app comfortably via the LED Remote or Mini Remote, while both hands remain on the handlebar.



Secure

On asphalt roads or paved paths, SmartphoneGrip holds your smartphone securely on the handlebar.



Full smartphone rechargeable battery

With the SmartphoneGrip you charge your smartphone as you ride – either wirelessly or wired.



More details

Safe operation on the road

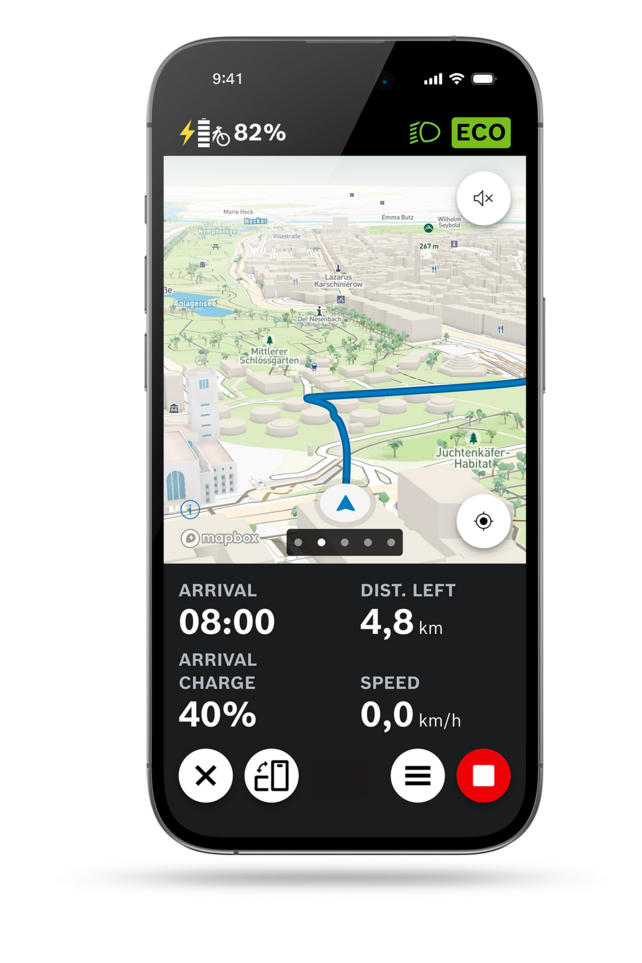

While riding, you control the eBike Flow app via the LED Remote, which is connected to your smartphone via Bluetooth. With the “right” and “left” buttons, for example, you can easily switch between Ride screen and Navigation without taking your hand from the handlebar. This allows you to ride more safely while maintaining full control of the display and your eBike. The Navigation function brings you reliably and safely to your destination with its clear map display and information on arrival time and distance.

Secure

On asphalt roads or paved forest and field paths*, the SmartphoneGrip holds the smartphone securely on the handlebar. The innovative and robust mount is suitable for all common smartphones with and without a case.** The back of your smartphone is protected by a rubberized surface; the charging socket and speakers are freely accessible.

* The SmartphoneGrip is not suitable for steps over six inches high, or for jumps.
**The supported dimensions of the smartphones used incl. camera bump and case are as follows: H: 0.27 – 0.5 inches, W: 2.6 – 3.5 inches, L: 4.8 – 6.9 inches. Suitable for smartphones up to a total weight of 0.6 lbs incl. case. Flip covers and wallet cases are not supported.

Fast switching between different displays

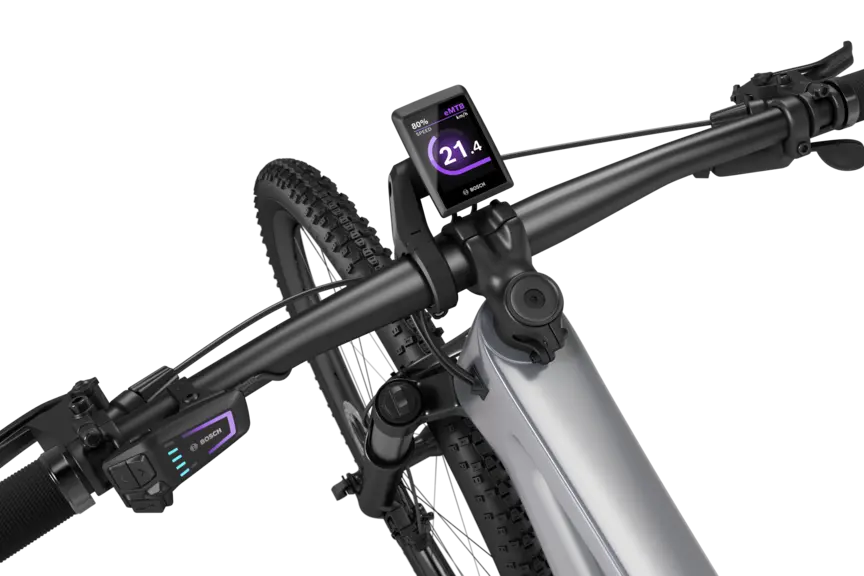

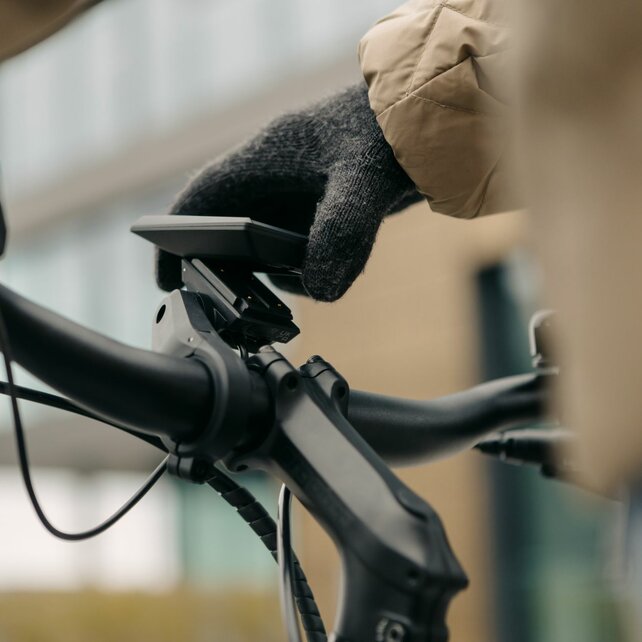

Full modularity and free choice between displays. You can use your smartphone with the SmartphoneGrip, or you can mount the Kiox 300 on the display holder. Kiox 300 is suitable for sporty use, while your smartphone is the best display for more relaxed rides, for example, through the city.

Find out more

Informative charge display

On the left side of the SmartphoneGrip is an LED that indicates whether and how your smartphone is charging, by means of different colors and light patterns. For example, a yellow LED indicates that your smartphone is charging wirelessly by induction.

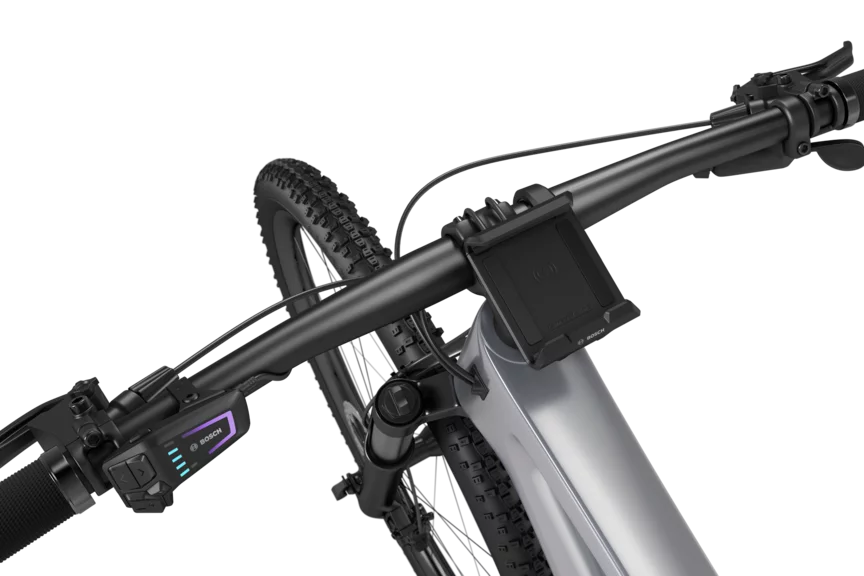

Custom positioning

Position your SmartphoneGrip on the handlebar where you have the best view of the display, or where it suits you best in terms of look and feel. Depending on where you want to position the SmartphoneGrip, different display holders are used.





The smart system offers a choice of different riding modes, which optimally adjust the support of the eBike motor depending on the riding situation and rider type.

New Race

Uncompromising dynamics and maximum support from start to finish – for the toughest eMTB races.


Uncompromising dynamics and maximum support from start to finish – for the toughest eMTB races.


New Cargo

Maximum support for eCargo bikes with up to 400% of your own input and optimal start-up behavior – even under full load.

Maximum support for eCargo bikes with up to 400% of your own input and optimal start-up behavior – even under full load.

Turbo

Maximum support into high cadences for steep climbs.

Maximum support into high cadences for steep climbs.

New Auto

Automatic adjustment of support in the event of a drop in speed due to climbs or sudden headwinds.

Automatic adjustment of support in the event of a drop in speed due to climbs or sudden headwinds.

eMTB*

Dynamic support for a natural feel and optimum control when mountain biking.

Dynamic support for a natural feel and optimum control when mountain biking.

Sport

Powerful support for all types of riding – both sporty riding and fast commuting in urban traffic.

Powerful support for all types of riding – both sporty riding and fast commuting in urban traffic.

Tour+**

Continuous support for energy-saving rides and a natural riding sensation for sporty rides.

Continuous support for energy-saving rides and a natural riding sensation for sporty rides.

Tour

Uniform support for rides with long ranges.

Uniform support for rides with long ranges.

Eco

Low level support with maximum efficiency for the longest range.

Low level support with maximum efficiency for the longest range.

Off

No support, all display functions are available.

No support, all display functions are available.

* In eMTB mode, the level of support varies between Tour and Turbo riding modes.
** In Tour+ mode, the level of support varies between Eco and Turbo riding modes.

All the available riding modes can be combined with eBikes in the smart system. Exceptions are Cargo mode and Race mode, which are only available for eBikes with the Cargo Line or the Performance Line CX Race Limited Edition. The bike dealer can activate up to four modes (in addition to Off mode) and adapt them to the rider (unless modifications have been excluded by the eBike manufacturer). The riding modes Race, Cargo, Turbo, Auto, eMTB, Sport, Tour+, Tour, and Eco can be configured according to the indivi­ dual needs of the rider via the eBike Flow app. Riders can set the support, dynamics, maximum torque, and maximum speed wi­ thin the specified framework.

Customize your riding modes

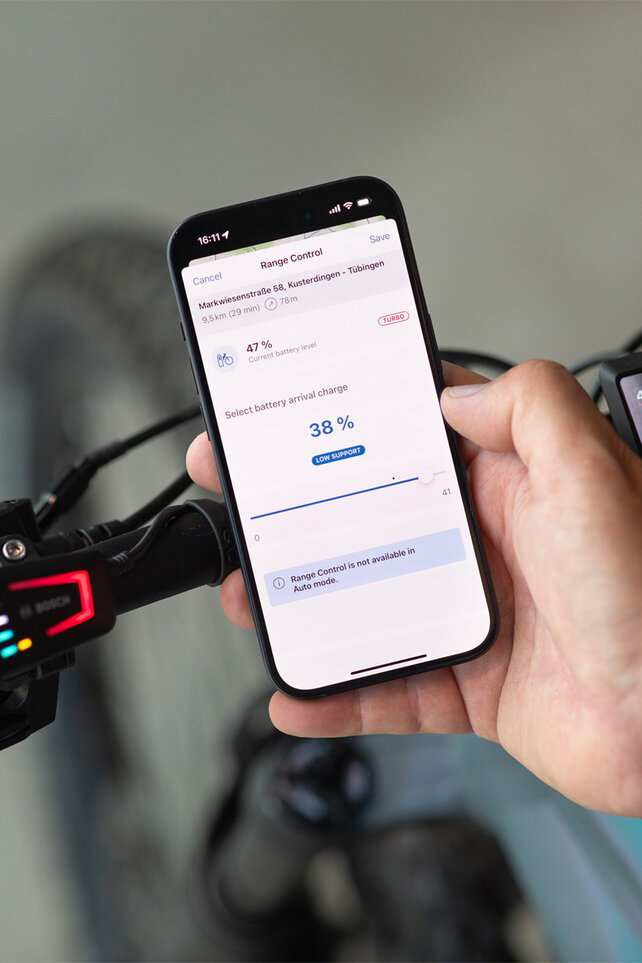

You can fine-tune the Race, Cargo, Turbo, Auto, eMTB, Sport, Tour+, Tour and Eco riding modes to give you either more support or range.

How it works









eBike Lock with the smart system

Activating the eBike Lock function once via the eBike Flow app lets you use your smartphone as a digital key. Since motor support can only be activated with your smartphone and the Bluetooth connection, your eBike is not attractive to thieves.

Find out more







NewEven better protected with eBike Alarm

The eBike Alarm function is the next level for even more safety for your eBike. Enabled by the ConnectModule and in conjunction with eBike Lock, it extends the drive lockout to include a comprehensive alarm function. Turning off your eBike automatically arms eBike Alarm, which is deactivated again on switching on. So your eBike is optimally protected at all times – without you having to do anything.

Find out more

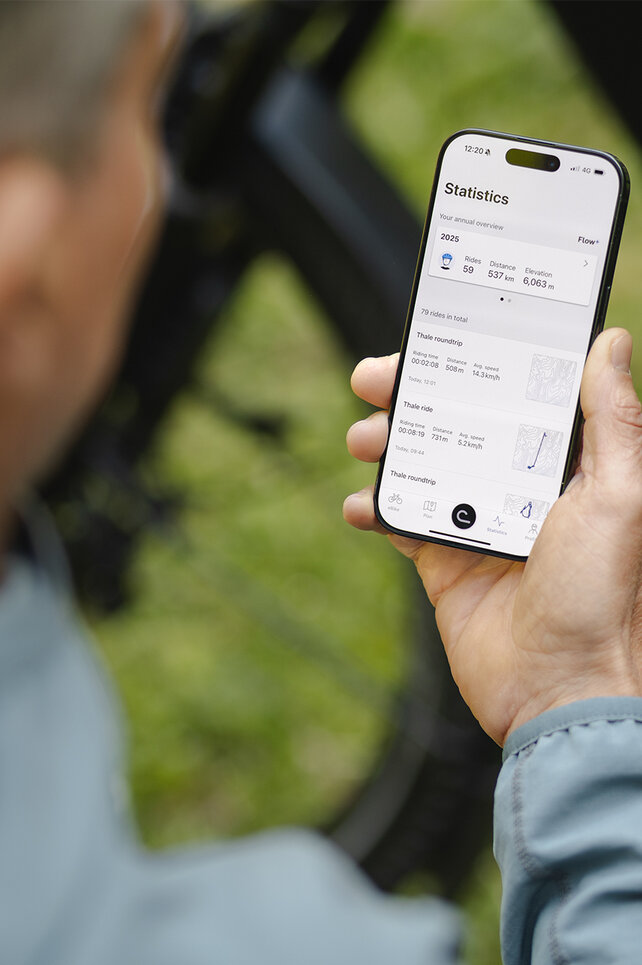

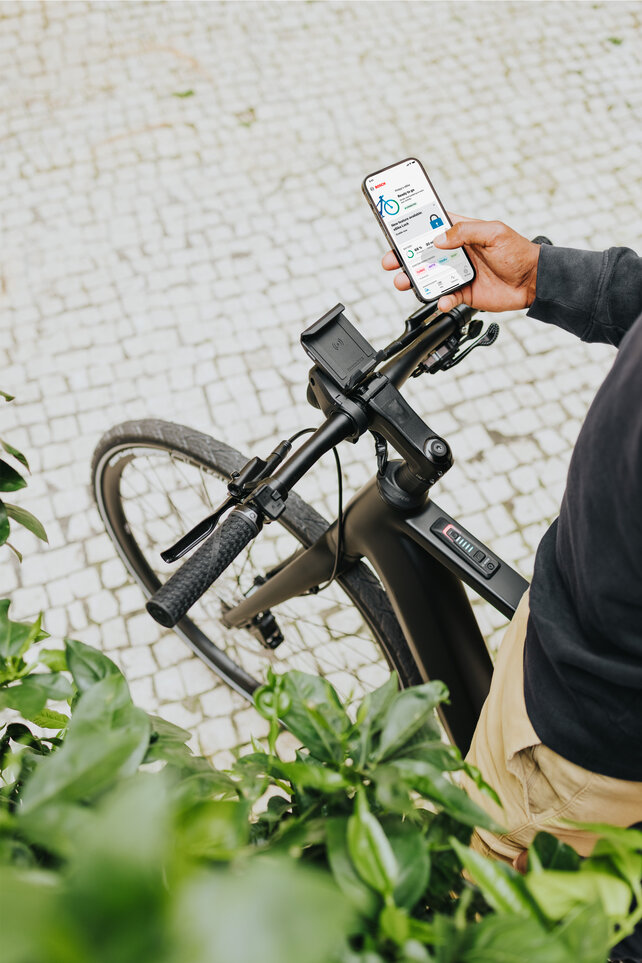

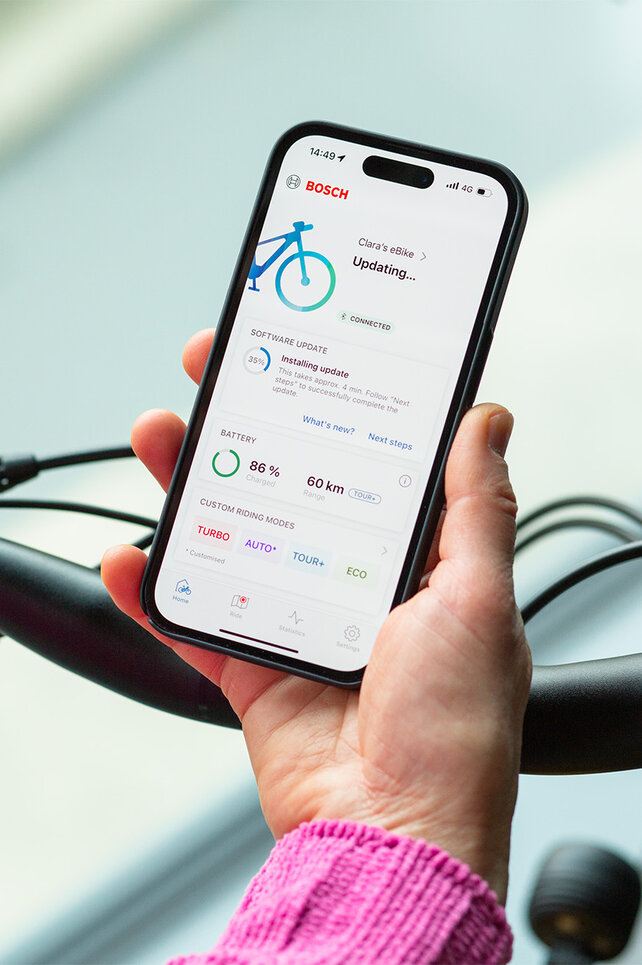

The eBike Flow app connects you to your eBike – and your eBike to the digital world. You use the app to control all the functions of the smart system, which connects the drive unit, battery, and control unit. It allows you to customize the eBike exactly to your preferences, enhance it, and keep it up to date. You simply download new features and services. You can conveniently install updates for your eBike via Bluetooth. This keeps your eBike up to date and continuously upgraded with new functions. This is how you can take your riding enjoyment to even higher levels.


FAQs & More

The modular display holder is required to use the SmartphoneGrip. Please note that there are two different handlebar diameters (1.25 and 1.38 inches (31.8 mm and 35 mm) (see also  operating instructions).

If you already have a Bosch smart system display installed (e.g., Kiox 300 display), a simple exchange is possible.

Yes. This is possible. The alignment of the display mount can be adjusted by opening the screw on the handlebar clamp. Once the desired alignment has been set, the screw can be tightened again.

It is also possible to adjust the tilt angle of the smartphone. To do this, loosen the screw on the side of the holding arm and set the desired tilt angle. Due to the locking mechanism, the angle can be adjusted in increments of about 20°. After the right position has been found, the screw is retightened.

Note: After mounting the smartphone, make sure that the smartphone cannot touch any fixed parts on the bike even in the event of vibration. This could permanently damage the smartphone.

Please make sure that your eBike is not continuously exposed to intense sunlight. If the temperature is too high, the SmartphoneGrip automatically switches off the charging function.

Note: All components, especially the eBike battery, can be damaged by extreme temperatures.

More FAQs
